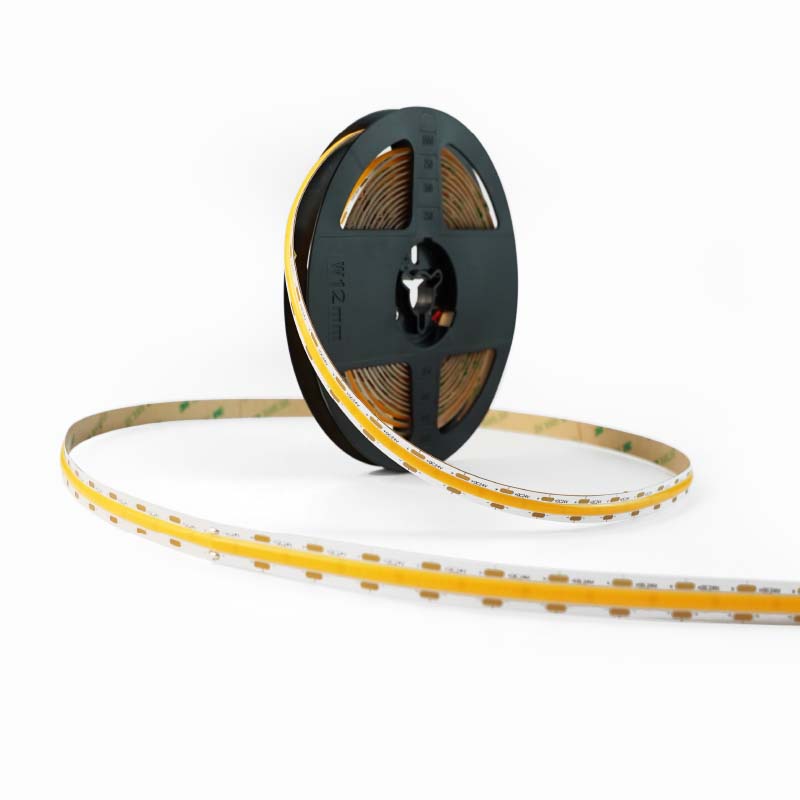

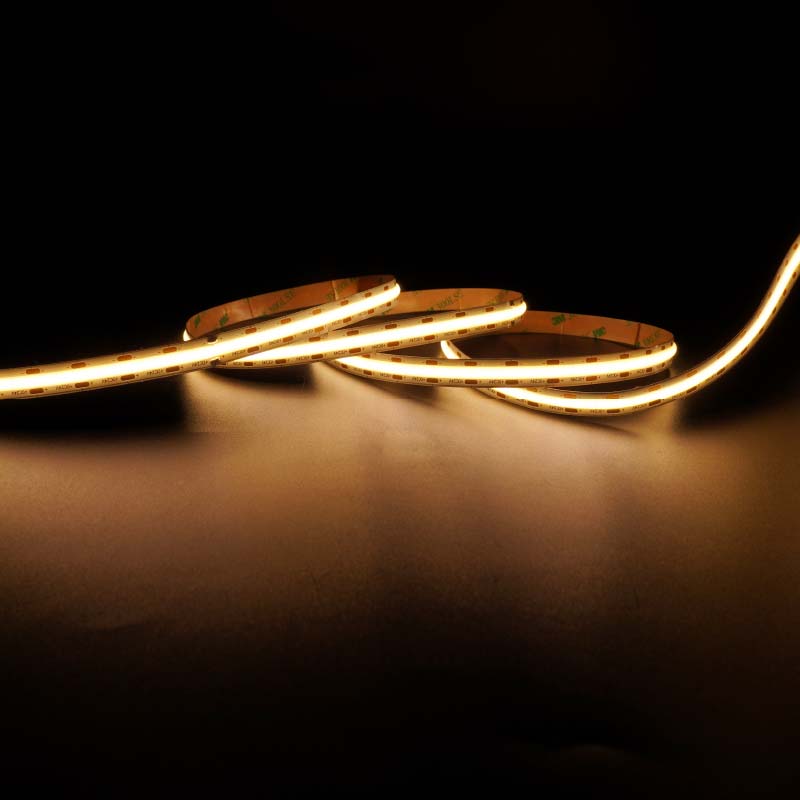

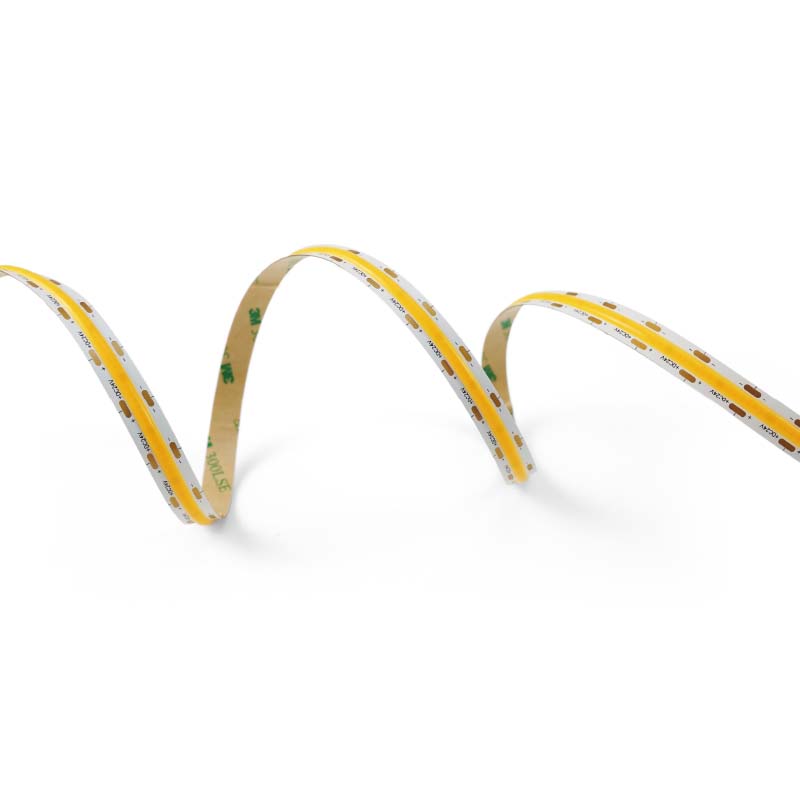

Mini Cut 10MM cob with one cut every 2cm
Features
20mm mini cut
10mm seamless COB LED Strip means nearly no sport or dark areas compared with SMD LED Strip
480 LEDs/M with bright, and uniform light emission, to bright, and uniform light emission
- SKU NO.
- YR-ST-LV24-W10-480-xxxx
- Voltage
- DC24V
- Power
- 10W/m
- Colour
- 3000k/4000k/6500k
- LEDs/M
- 480 pcs/m
- CRI
- 90
- IP Rating
- IP20
- Min Cut Unit
- 20mm
- Efficiency
- 90Lm/W
- Working Temperature
- -25°C~+60°C
- PCB Wideth
- 10mm
- Warranty
- 3 Years
Description
Leave spotting in the dark with the new professional standard in 100% spotless chip on board LED tape. Perfect for a highly desired seamless, spotless and continuous linear lighting solution. Comes with a 500mm 2 core cable with tinned ends fitted at each end of the tape and 20mm cut points allowing greater precision when cutting to length.
Perfect for creating eyecatching, professional standard linear lighting displays with cost effective efficiency, outputting 900 lumens per metre and 92 lumens per watt on average. Compatible with DMX, standard and professional Single Colour LED controllers.
Complete with a peace of mind 3 Year Guarantee for indoor use.
Capable of a maximum continuous run of Up to 5 metres at 24 volts based on a 10% voltage drop after 5 metres. Complete with a 3m self adhesive backing for easy mounting into LED Channel.
Dimming Compatibility
- Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
- Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
All products should be installed by a technically competent person
