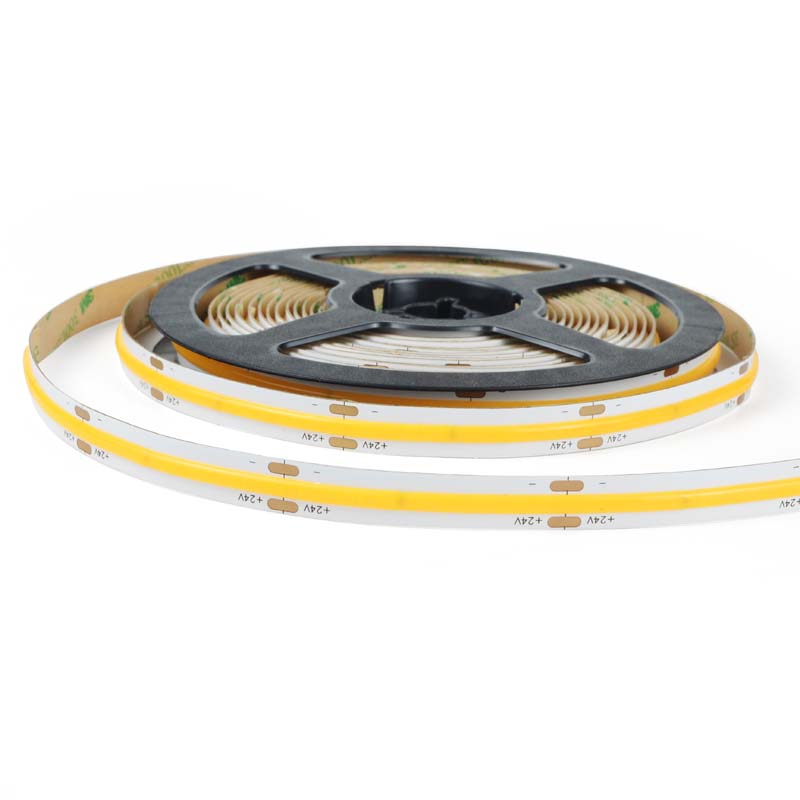

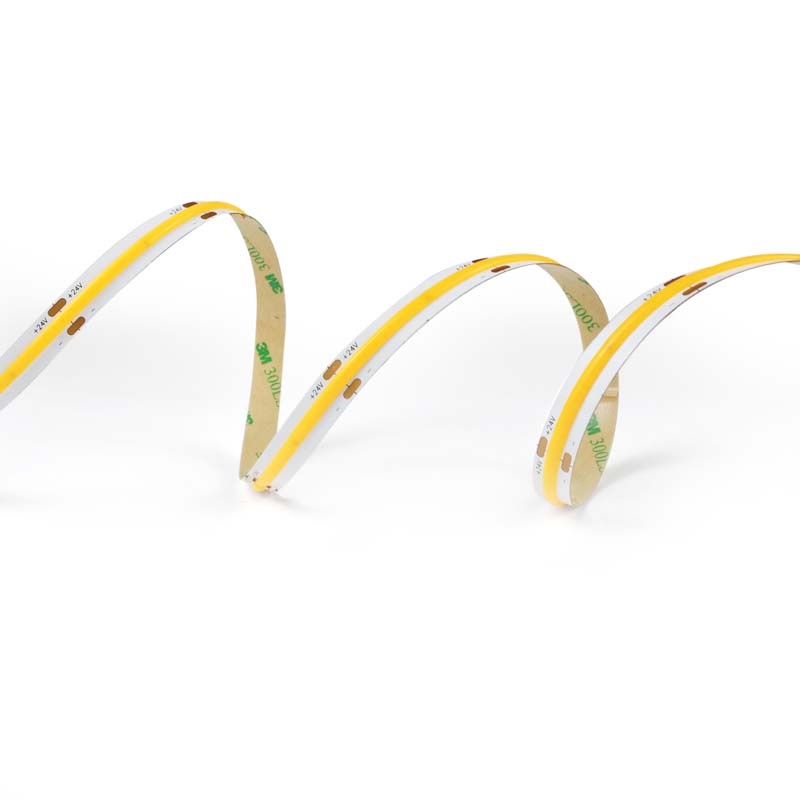

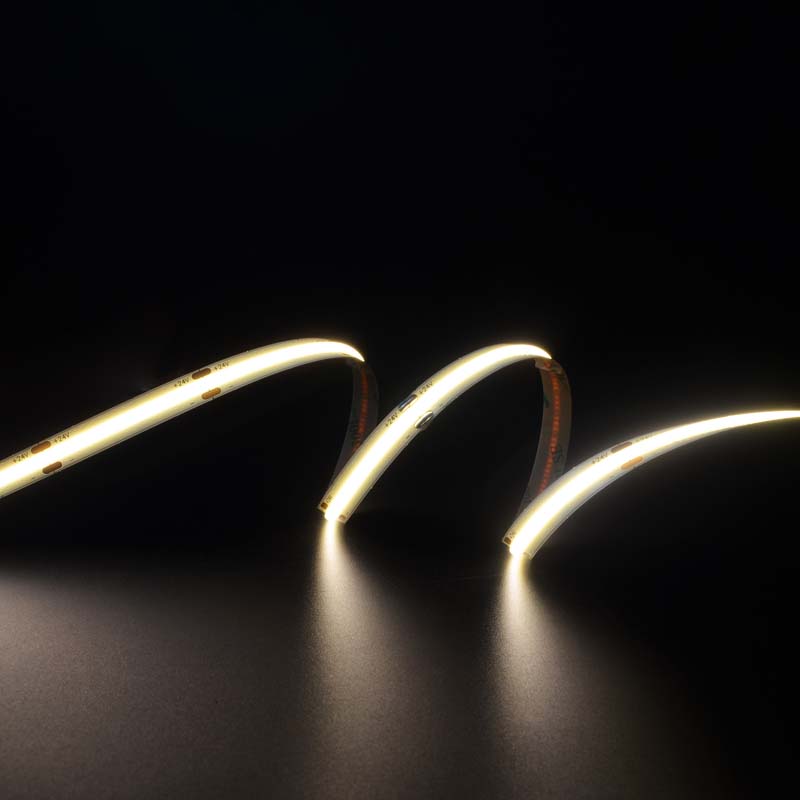

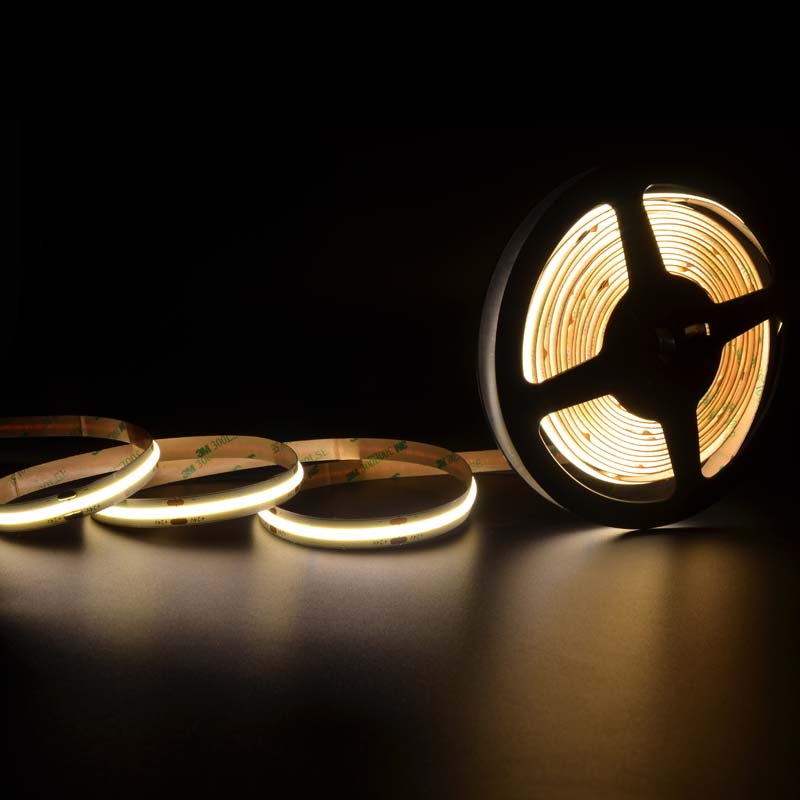

Ultra Long 20m 24V COB High Output Constant Current LED Strip Light with Dot-Free Uniform Glow
Features
- Advanced COB design coupled with ultra-high LED density (420 LEDs/meter) for uniform glow without distinct hot spots
- Constant current regulating circuitry for superior performance
- 180-degree wide beam angle and high-CRI (90) reveal colors of objects more naturally and evenly
- Cuttable at designated cut marks to suit various length requirements; cut sections may be linked by directly soldering wires
- Dimmable with optional compatible dimmable transformer and wall dimmer switch or PWM dimmers
- SKU NO.
- YR-ST-LV24-HL-W8-420-xxxx
- Voltage
- DC24V
- Power
- 8.4W/m
- Colour
- 3000k/4000k/6500k
- LEDs/M
- 420 pcs/m
- CRI
- 90
- IP Rating
- IP20
- Min Cut Unit
- 50mm
- Efficiency
- 90 Lm/w
- Working Temperature
- -25°C~+60°C
- PCB Wideth
- 10mm
- Warranty
- 3 Years
Description
Description
This high quality 24-volt, flexible single color LED strip is perfect for nearly any applications including mood and accent lighting. It features COB design with an ultra-high LED density, especially suited for applications that call for uniform glow throughout the length of the LED strip, without any distinct hot spots.
Note
- Must be used with compatible power supply and optional dimmer or controller.
- Avoid exposure to direct sunlight.
- Minimum bending radius is 5 cm (2").
- Unused wires of LED strip must be isolated to prevent potential short circuit.
- Unroll LED strip completely before powering on.
- When the full length is used, it is recommended to power the strip from both ends for best results.
- Test all components before cutting or permanently mounting the strip.
- Do not lengthen LED strip by directly connecting additional strips to it; additional lengths should be wired in parallel (controller, if used, and power supply must be of adequate capacity).
- Specs based on factory testing of 1m lengths; voltage drop is greater on 12V strips than their respective 24V versions.
- For best results, power LED strip from both ends whenever possible.
- Due to its high power, it is strongly recommended to mount LED strip on aluminum channels to facilitate proper heat dissipation.
