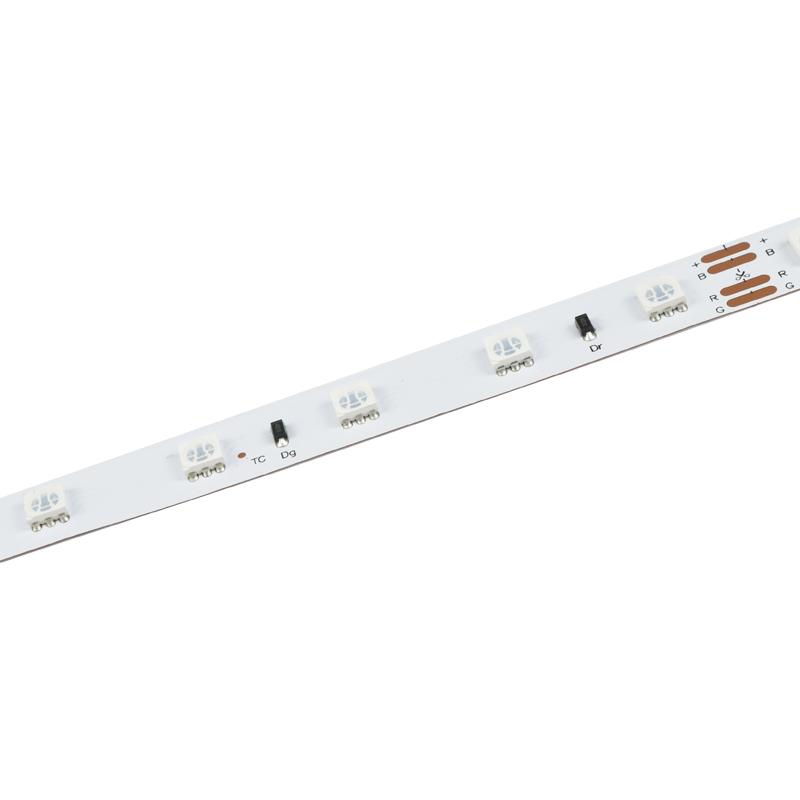

48V Super Long LED Strip-5050RGB-54led-50Meter

Description

About the 48V super long LED strip

The 48V super long LED strip light is an LED strip light with an input voltage of 48V dc that can be super long, without voltage drop, and has the same brightness at the beginning and end. 48V ultra-long LED strip light can be up to 60 meters long without voltage drop for single power input.

According to Ohm’s law, power is equal to voltage times current. In the case of certain power, the higher the voltage, the lower the current. The voltage drop across a conductor is equal to the resistance of the conductor multiplied by the current, so the smaller the current, the smaller the voltage drop.

Why choose 48V LED strips

1. Ultra Long. Max length is 60m driven by single end power supply, can satisfy your choice of all lighting lengths, fewer drivers, less wiring, faster installation, and less installation cost.

2. Consistent brightness. Constant current IC on PCB, no voltage drop problem, consistent end-to-end brightness.

3. Thicker PCB. 3oz or 4oz PCB and with 3M heat dissipation backing tape, good heat dissipation function, less lighting degradation, longer lifetime.

4. High lumen output ,high brightness, higher efficiency , more than 2000lm/m.

5. Serialized products: Single color, tunable white, RGB, and RGBW version are available.

6. Silicone integrated extrusion process, IP65, IP67 optional.

Max Length of LED Strip light?

Regarding LED strip length, 5 meters/reel is the most common size. But do you know LED strips can be as long as 60 meters/reel?

The LED strip length is measured in meters per reel. And the length of the LED strip depends on the voltage drop. Low-voltage LED strips like 12V or 24V are usually 5 meters in length. Whereas high-voltage AC LED strips with a voltage rating of 110V or 240V can go up to 50 meters in length. However, the longest LED strip available is 60 meters, providing constant brightness from end to end without any voltage drop.

More About the LED Strip Length

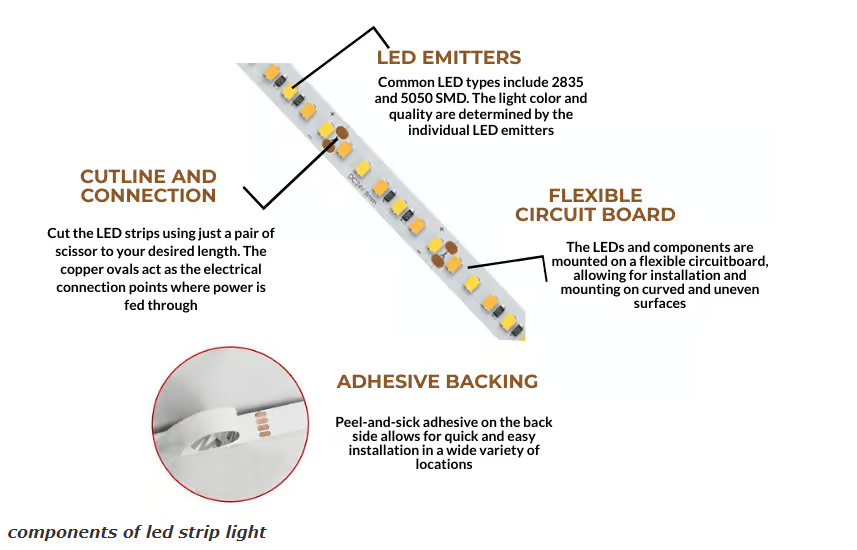

LED Strip are tape or rope-like flexible light fixtures that come in reels. And the length of the strip per reel is the LED strip length. However, you can cut these strips to your required size as they have cut points.

Usually, LED strips come in a 5m reel which is the standard size. And this 5m LED strip is available mainly in two voltages, 12V, and 24V. Besides, many other length options are available for LED strips; you can also customize the length as per your requirement. But, the fact to be noted is that the voltage will also have to be increased with the increase in length. But why so? Let’s find the answer in the below section.

Voltage is related to the Strip Length

When purchasing an LED strip, you will find the voltage rating written side by side in the specification. This is because the voltage is deeply related to the length of the strip. How? To know that, let’s get into some physics.

When the length of the strip increases, the resistance of current flow and the voltage drop also increase. So, to ensure proper current flow, the voltage also has to be increased with the increment of length. So, here you need to keep two factors in mind-

Length is Up-Voltage up-voltage drop down

• The voltage of the strip has to be increased with the increase in length to minimize the voltage drop
• With the same length, a strip with a higher voltage is better; For example 5m@24V is more efficient than 5m@12V

In the later section of the article, you will also learn more about the concept of voltage drop and how it affects the strip length. So, continue reading.

Different LED Strip Lengths List reference

As you already know, the length of the LED strip depends on the voltage. Here are some common LED strip lengths for different voltage ranges:

Besides these lengths, LED strips are available in other measurements also. You can also customize the LED strip lengths as per your requirement.

To know about the 48V Long LED Strip, pls contact us info@yrlight.net for more details
