Built-in CC SMD2835 LED STRIP SERIES
Features
- The excellent LED source adopt high quality raw materials of pure copper bracket,pure gold thread and imported sealing glue.
- 2835 LED built-in constant current IC design,ensure the same brightness both the beginning and the end,connect longer in series.
- Don’t need to add any complicated precision electronics,higher constant current precision.
- Cuttable,be free to cut off and weld along with the above cutting line
- Supplied by the constant voltage power supply.
- SKU NO.
- YR-ST-LV36-CCIN-W10-90-MONO
- Voltage
- DC24V
- Power
- 9.6W/m
- Colour
- 3000K/4000K/6000K
- LEDs/M
- 120LEDs/M
- CRI
- >90
- IP Rating
- IP20
- Min Cut Unit
- 50mm
- Efficiency
- >90Lm/W
- Working Temperature
- -25°C~+60°C
- PCB Wideth
- 10mm
- Warranty
- 3 Years
Description

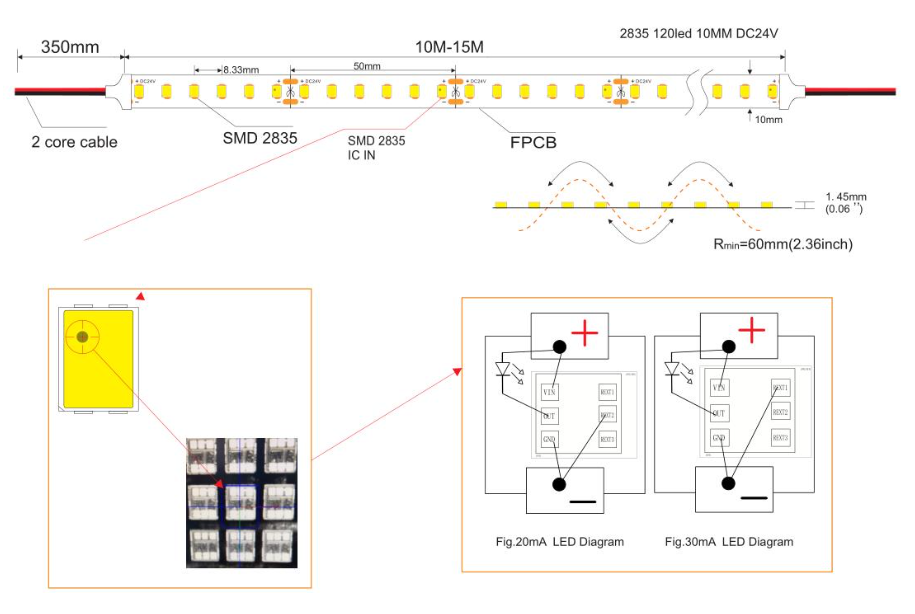

Technical Dimension:
Electrical components
In the white PCB board, can be cut every 6 LEDs at the marked intervals & rejoined by a simple solder or a quick connector. There are 600 pcs LEDs per roll, installed by isometric intelligent control electric technology to ensure the current output stable. It also the guarantee for safe handling and long life span.

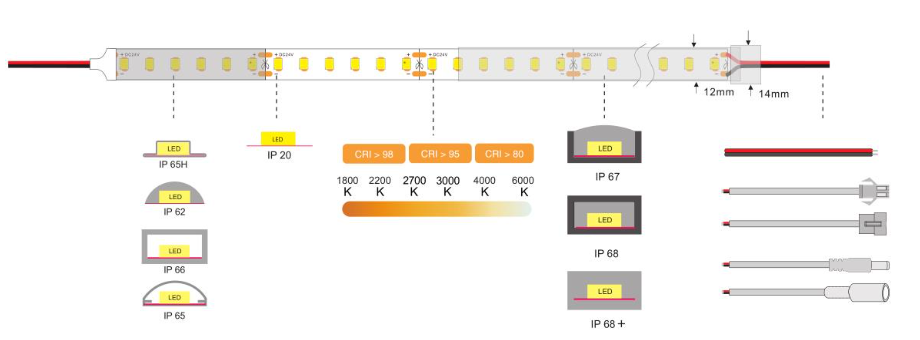

High-transparency(Waterproof)
PU or Silicone adhesive surface provides super penetrability and excellent flexibility. 2835 strip light’s transparency is 90% which is mean to say up to a non-waterproof strip light.
The LED Strip Light is rated IP65 and use PU adhesive surface protection or Silicon glue as waterproof material. DC24V operating voltage, over 50,000 hour’s service time
Low-luminous decay
Designed with special heat dissipation technology and Low Rth (Thermal resistance 40°C/W) component. Its heat conducting property is pretty well.
Mode of connection for Constant Current Led Strip Lights
Application
Widely used for home decoration, hotels, clubs, shopping mall and sign lighting;
Architectural decorative lighting, boutique ambiance lighting, office lighting, Decorative lights for holiday, event and exhibition;
Extensively applied as back Lighting, concealed lighting, channel letter lighting;
Applicable for automobile and bicycle decoration, border or contour lighting
