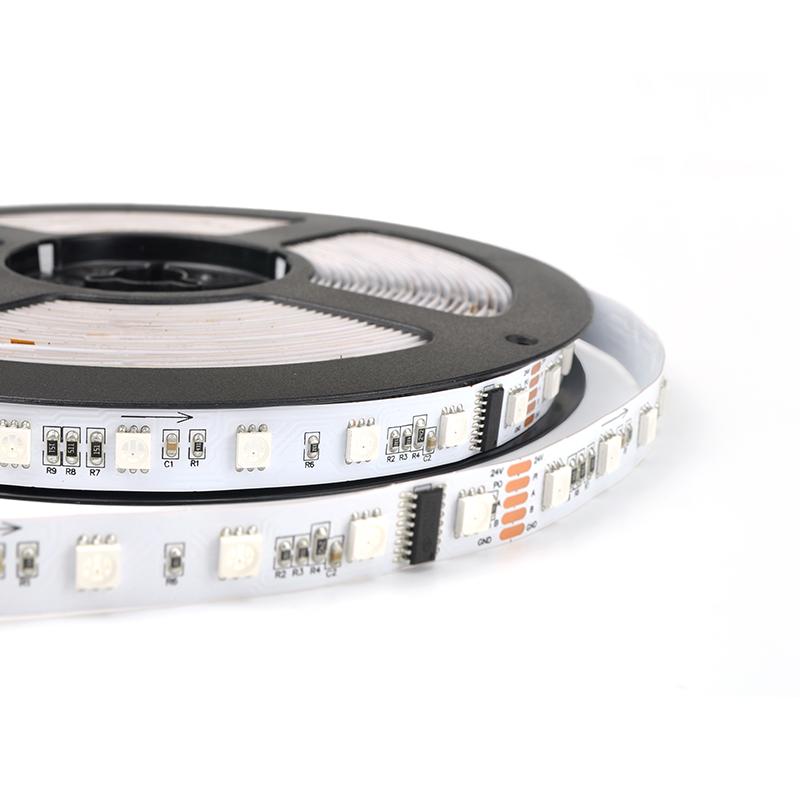

24V 5050RGB LED Strip DMX512
Features
12/24V DMX 512 RGB 60 led digital strips that different with normal SPI led pixel strips.
DMX512 led strips protocol signal is parallel not series.
Its advantage is parallel DMX512 signal could avoid RGB LEDs color influenced by the failure of one light in serial connection.
Entire strip has 20 pixels ( 60 channels), each pixel control 1 unit LED Strip
Communication between DMX512 led digital strips are synchronized perfectly under support of Artnet / DMX512 led controllers.
DMX512 RGB led pixel tape strips DMX address need to be set via DMX address coder / controller.
Vivid lighting performance operated by Madrix software, Artnet / DMX512 led controllers.
There are single DMX512 Signal wire digital control interface A led strips to choose.
10/20 pixels 60 leds DMX512 RGB led strip is flexible , bright, durable and easy for installation.
- SKU NO.
- YR-ST-LV24-W12-60-RGB-Pixel
- Voltage
- DC24V
- Power
- 14.4W/m
- Colour
- RGB Pixel
- LEDs/M
- 60LEDs/M
- IP Rating
- IP20
- Min Cut Unit
- 100mm
- Working Temperature
- -25°C~+60°C
- PCB Wideth
- 12mm
- Warranty
- 5 Years
Description
About the DMX RGB addressable strip light
DMX RGB/RGBW led strip is parallel signal transfer, not series circuit , it is compatible with control system such as Artnet, Arduino.
DMX512 digital tape light is commonly used to control stage lighting and effects.
If you need these led strips, please contact , we will provide technical support for you.

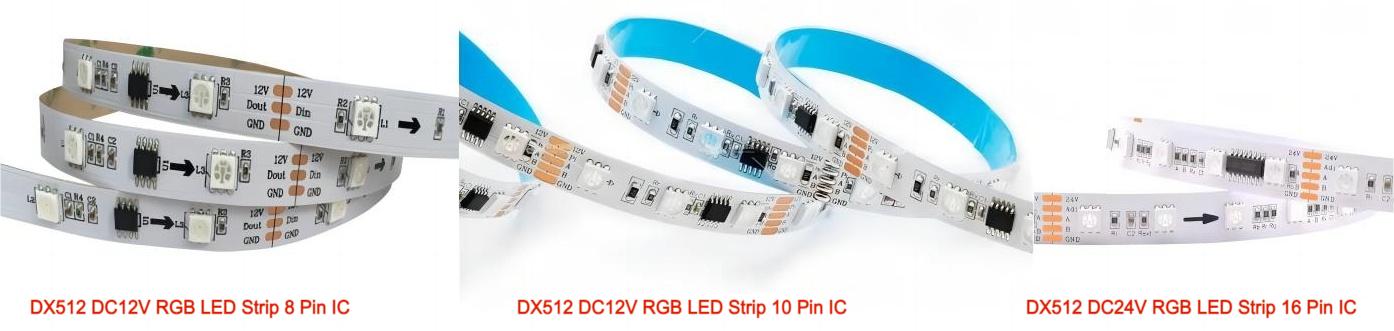

DMX RGB LED Strip Pictures
Parameters of DMX512 RGB 60leds/m LED strip
| Model | Voltage | Power Consumption | Beam Angle | LED Qty | LED Chip Type | IC type | PCB Size |
| DMX512-RGB-60-8PIN | DC12V/24V | ≤14.4W | 120° | 60LEDs/m | SMD 5050 | 8-pin | 5000×10mm/5000×12mm |
| DMX512-RGB-60-10PIN | 10-pin | 5000×10mm/5000×12mm | |||||
| DMX512-RGB-60-16PIN | 16-pin | 5000×12mm/5000×15mm |
| Voltage | DC12V/24V | Power Consumption | ≤14.4W | ||||
| Color | Addressable RGB | Beam Angle | 120° | ||||
| LED Chip Type | High Quality SMD 5050 | LED Density | 60LEDs/meter | ||||
| Control Mode | DMX512 | Working Temperature | -25℃ to 45℃ | ||||
| Pixel Qty | DC12V | 20 pixels per meter | Cut Length | DC12V | 3LEDs/5cm | ||
| DC24V | 10 pixels per meter | DC24V | 6LEDs/10cm | ||||
| Installation | 3M Adhesive Tape | Warranty | 5 Years | ||||
Product description of DMX512 strip light
1. DMX512 data is transmitted over a differential pair using EIA-485 voltage levels. The electrical standard of DMX512 are the same as the EIA-485-A.
2. DMX512 has two twisted pair data paths, although the current specification only defines the use of one of the twisted pairs.
The second pair is not defined, but is required by electrical codes.
3. Flexible PCB material, Black/White PCB optional.
4. Different waterproof grade for IP20/IP65/IP67/IP68.
5. Communication between DMX512 led digital strips are synchronized perfectly under support of Artnet / DMX512 led controllers.
6. External IC. Can make 5V , 12V , 24V.
7. LED is super bright Epistar/SanAn SMD RGB LED.
DMX512 Pixel LED strip application
1.Great for hotel, KTV, Bars, Restaurant and other recreation place do adornment to atmosphere of Freshness
2. Suitable for automobile chassis adornment, body and car decoration,high brake decoration and advertisement,design city lighting project, the exhibition hall and building exterior decoration.
3.Used in illuminating signs, interior lighting, cove lighting ,or exhibit lighting, large cabinet lighting, project lighting, and any sort of close application task lighting.
Acccept customize: We accept customization for projects or commercial customers, just contact us and we have professionals design for you.
FAQ:
1. Q: What's the difference between RGB and RGBW tape?
A: RGB Pixel LED strip uses a 3-in-1 colour (red, green and blue) LED chip. RGBW Pixel LED light has a 4-in-1 colour (red, green, blue and white) LED chip.
RGB LED lights use 3 channels per LED, and RGBW LED strips use 4 channels per LED. Although RGB can produce a color close to white, the the RGBW pixel
tape provides a purer white.
2. Q: Waht's your MOQ?
A: No limit on MOQ. We welcome sample order to test and check quality. Mixed samples are acceptable.
3. Q: What about the lead time?
A: 3-7 days for samples. Mass orders need about 20-45 days.
