24V DMX512 5050RGBW LED Strip light
Features
24V DMX512 RGBW led digital pixel tape is different with normal SPI led pixel strips. DMX512 RGBW led strip has in parallel signal
DMX512 RGBW led pixel strip have following advantages that SPI led pixel strips do not have:
- Parallel DMX512 signal could avoid RGBW LEDs color influenced by the failure of one light in serial connection.
- There are 8bit DMX512 signal, 256 grayscale and 16 bit DMX512 signal, 65536 grayscale to choose which based on the DMX512 IC model.
- Offer UCS512C4 IC chip or TM512AC IC chip
- Offer Gama correction curve of 1.0 or Gama correction curve of 2.2
- Presence of white LED allows for higher brightness and more color mixing options.
- 4 colors LED allowing for tones that were previously hard to achieve with single RGB strip.
- White and RGB can be independently controlled to allows us to create bolder and more vibrant colors than with RGB alone
Entire one meter strip has 20 pixels ( 80 channels), 120 pcs RGBW leds on 15mm width pcb board.
This DMX512 RGBW IC chip is UCS512 C4 IC chip that is 485 TTL signal with A,B digital control interface.
Communication between DMX512 led digital strips are synchronized perfectly under support of Artnet / DMX512 led controllers.
UCS512 C4 DMX512 RGBW led pixel tape strips DMX address need to be set via DMX address coder / controller.
When use our DMX address writer to mark the DMX addresses, no matter input end of strip or output end of strip, you can connect it to the DMX address writer to write the DMX512 address successfully.
We also have individually DMX512 RGBW LED strips from DC5V - DC12V.
Widely used in entertainment, stage,live performance like 3D effects and TV shows, etc.
24V DMX512 RGBW 120 leds digital pixel strip is offered in both waterproof and non-waterproof versions allowing for both indoor and outdoor applications.
- SKU NO.
- YR-ST-LV24-W12-60-RGBW-Pixel
- Voltage
- DC24V
- Power
- 14.4W/m
- Colour
- RGB+White Pixel
- LEDs/M
- 60LEDs/M
- IP Rating
- IP20
- Min Cut Unit
- 100mm
- Efficiency
- 80Lm/w for White color
- Working Temperature
- -25°C~+60°C
- PCB Wideth
- 12mm
- Warranty
- 5 Years
Description
About the DMX RGBW addressable strip light
DMX RGBW led strip is parallel signal transfer, not series circuit , it is compatible with control system such as Artnet, Arduino.
DMX512 digital tape light is commonly used to control stage lighting and effects.
If you need these led strips, please contact , we will provide technical support for you.

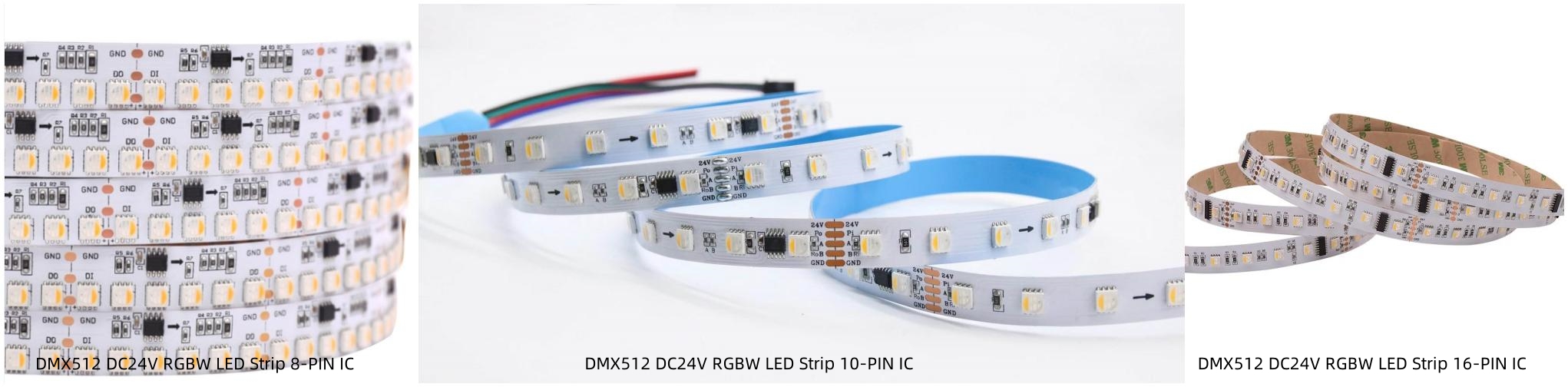

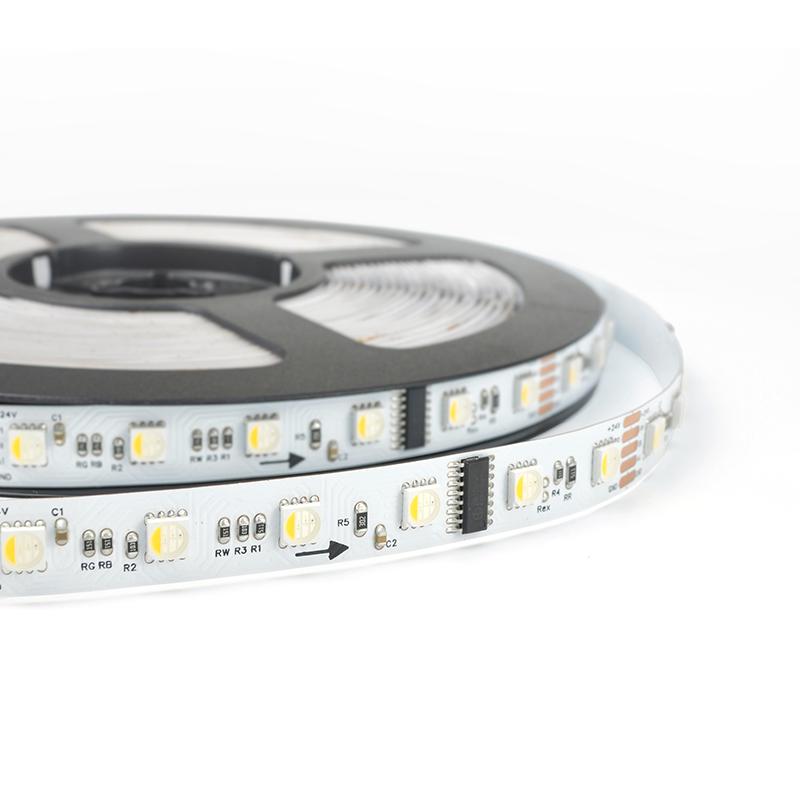

DMX RGB LED Strip Pictures

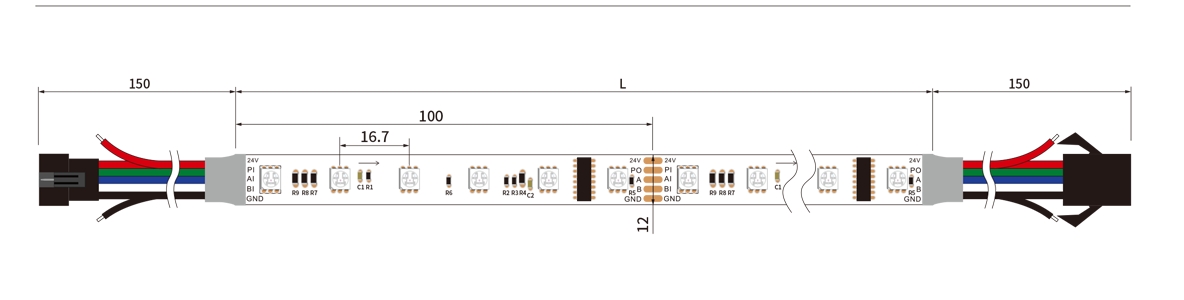

Dimension Structure
Parameters of DMX512 RGBW 60leds/m LED strip
| Model | Voltage | Power Consumption | Beam Angle | LED Qty | LED Chip Type | IC type | PCB Size |
| DMX512-RGBW-60-8PIN | DC12V/24V | ≤14.4W | 120° | 60LEDs/m | SMD 5050 | 8-pin | 5000×10mm/5000×12mm |
| DMX512-RGBW-60-10PIN | 10-pin | 5000×10mm/5000×12mm | |||||
| DMX512-RGBW-60-16PIN | 16-pin | 5000×12mm/5000×15mm |
| Voltage | DC12V/24V | Power Consumption | ≤14.4W | ||||
| Color | Addressable RGBW | Beam Angle | 120° | ||||
| LED Chip Type | High Quality SMD 5050 | LED Density | 60LEDs/meter | ||||
| Control Mode | DMX512 | Working Temperature | -25℃ to 45℃ | ||||
| Pixel Qty | DC12V | 20 pixels per meter | Cut Length | DC12V | 3LEDs/5cm | ||
| DC24V | 10 pixels per meter | DC24V | 6LEDs/10cm | ||||
| Installation | 3M Adhesive Tape | Warranty | 5 Years | ||||
Product description of DMX512 strip light
1. DMX512 data is transmitted over a differential pair using EIA-485 voltage levels. The electrical standard of DMX512 are the same as the EIA-485-A.
2. DMX512 has two twisted pair data paths, although the current specification only defines the use of one of the twisted pairs.
The second pair is not defined, but is required by electrical codes.
3. Flexible PCB material, Black/White PCB optional.
4. Different waterproof grade for IP20/IP65/IP67/IP68.
5. Communication between DMX512 led digital strips are synchronized perfectly under support of Artnet / DMX512 led controllers.
6. External IC. Can make 5V , 12V , 24V.
7. LED is super bright Epistar/SanAn SMD RGB LED.
DMX512 Pixel LED strip application
1.Great for hotel, KTV, Bars, Restaurant and other recreation place do adornment to atmosphere of Freshness
2. Suitable for automobile chassis adornment, body and car decoration,high brake decoration and advertisement,design city lighting project, the exhibition hall and building exterior decoration.
3.Used in illuminating signs, interior lighting, cove lighting ,or exhibit lighting, large cabinet lighting, project lighting, and any sort of close application task lighting.
Acccept customize: We accept customization for projects or commercial customers, just contact us and we have professionals design for you.
FAQ:
1. Q: What's the difference between RGB and RGBW tape?
A: RGB Pixel LED strip uses a 3-in-1 colour (red, green and blue) LED chip. RGBW Pixel LED light has a 4-in-1 colour (red, green, blue and white) LED chip.
RGB LED lights use 3 channels per LED, and RGBW LED strips use 4 channels per LED. Although RGB can produce a color close to white, the the RGBW pixel
tape provides a purer white.
2. Q: Waht's your MOQ?
A: No limit on MOQ. We welcome sample order to test and check quality. Mixed samples are acceptable.
3. Q: What about the lead time?
A: 3-7 days for samples. Mass orders need about 20-45 days.
