5V SMD5050 RGB SPI (IC Built-in)

Features

Bulit IC digital IC strip, each LED is a pixel

WS2812B LED strip can be programmed

Possible to cut the strip into individual sections per chip

the strip extendable by 2 meters if necessary.

SKU NO.
YR-ST-LV5-W12-60-RGB-Pixel
Voltage
DC5V
Power
14.4W/m
Colour
RGB Pixel
LEDs/M
60 LEDs/M
IP Rating
IP20
Min Cut Unit
16.7mm
Working Temperature
-25°C~+60°C
PCB Wideth
12mm
Warranty
3 Years

Description

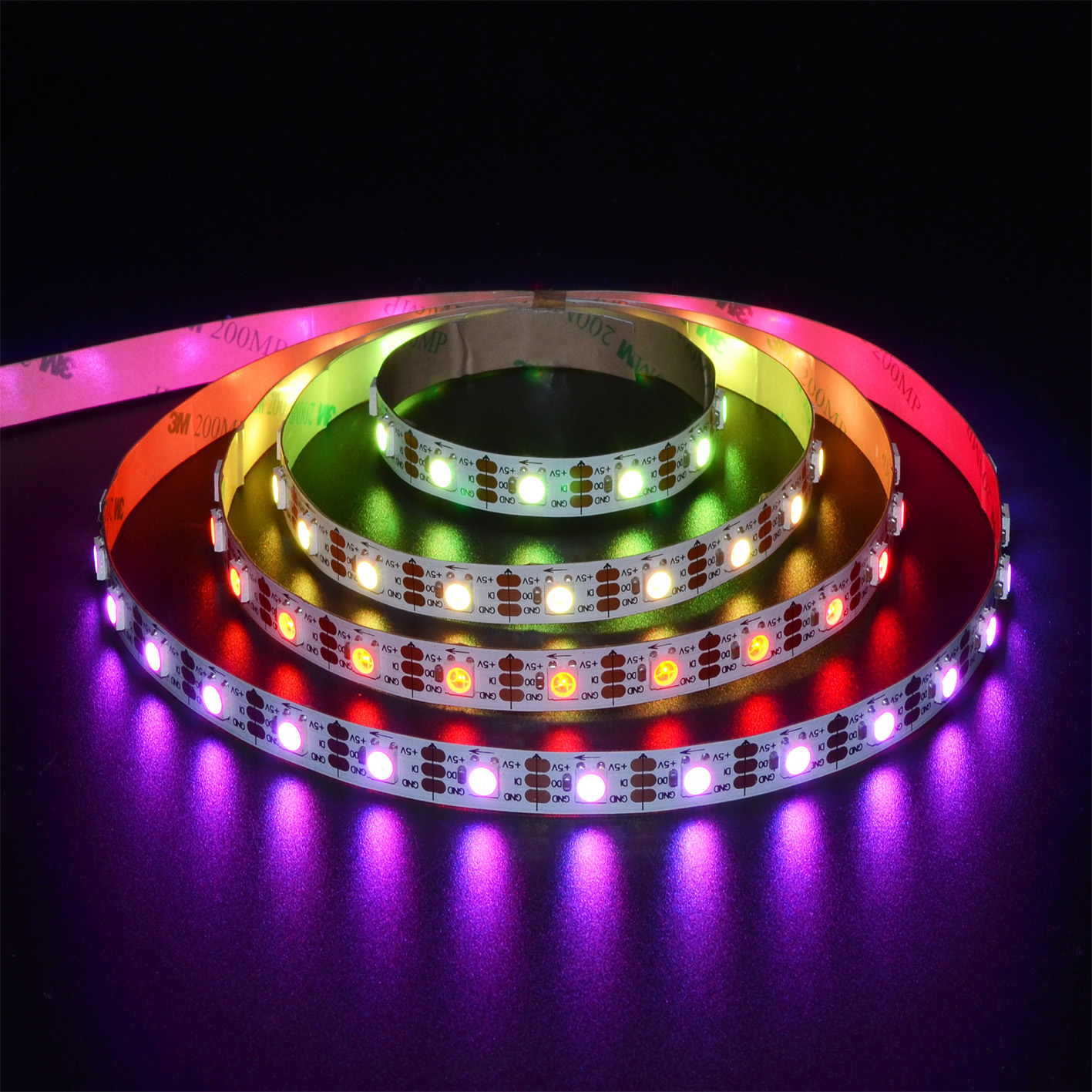

The smart LED strip IC allows each LED to be controlled individually. Each LED in the strip can be adjusted in terms of its red, green and blue color, with 8-bit PWM precision which translates to 24 bits per pixel. It is ideal for logo displays, advertising boards, hotels, bars, weddings, events and as a replacement for traditional neon.

The IC chip used in this strip is the WS2812B, with low power consumption and high efficiency, which enables intelligent RGB lighting control.

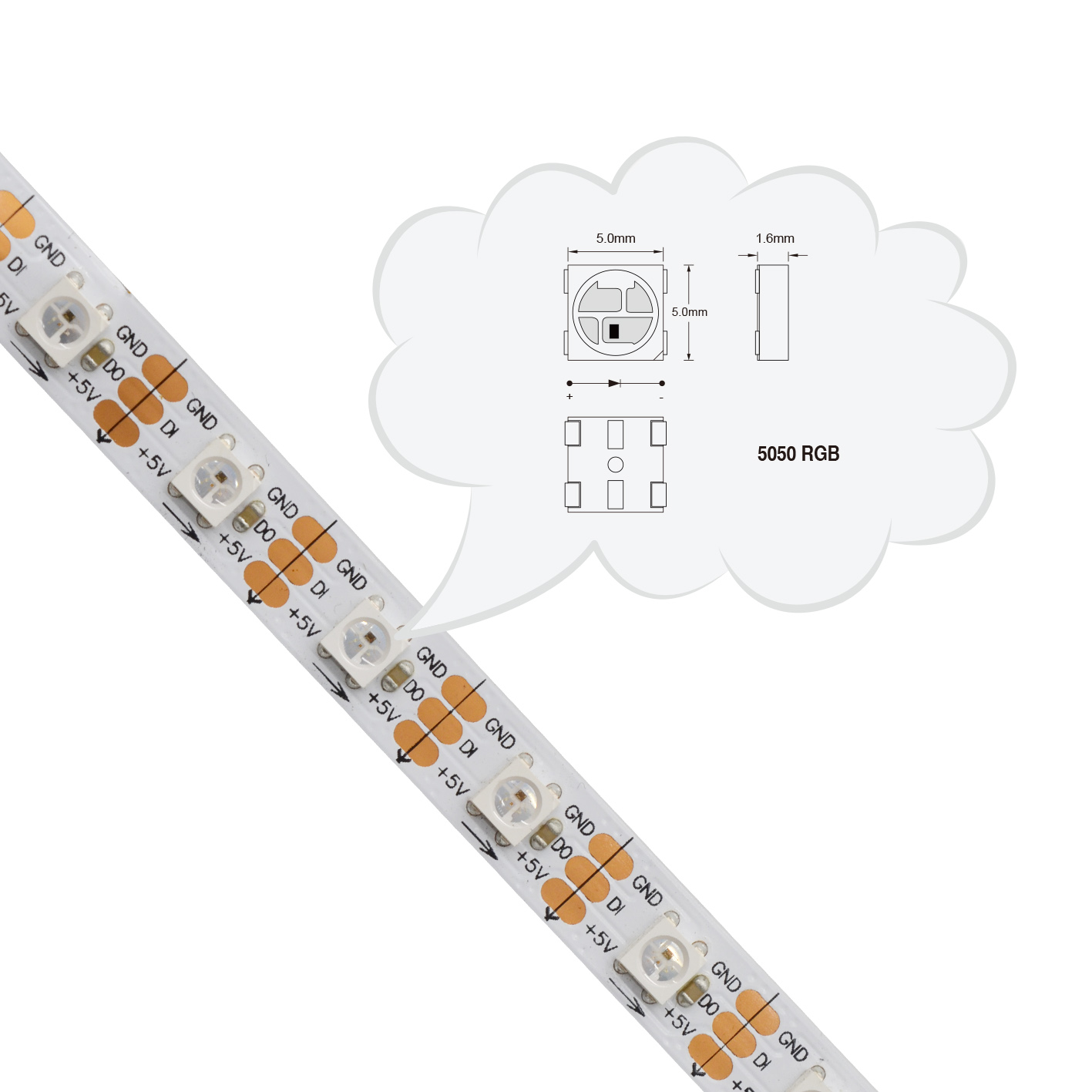

With a beam opening angle of 120° and a voltage of 5V, the strip features 60 high quality integrated SMD 5050 RGB RGB SMD LED lights.

The individual control of each chip offers multiple LED lighting possibilities, allowing you to create eye-catching visual effects. In addition, these RGB IC RGB LED strips are easy to program and work well with many types of controllers to create the desired effect every time.

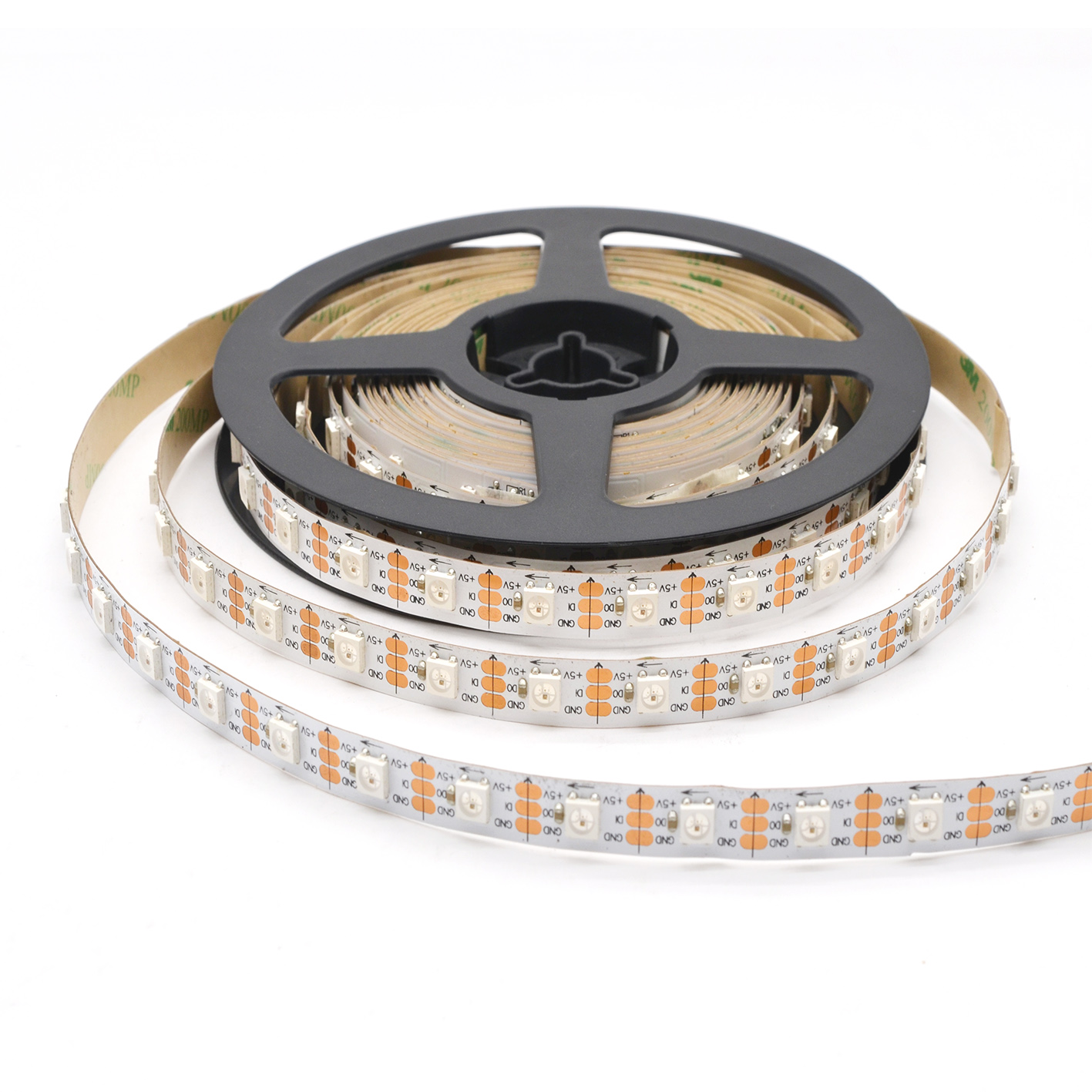

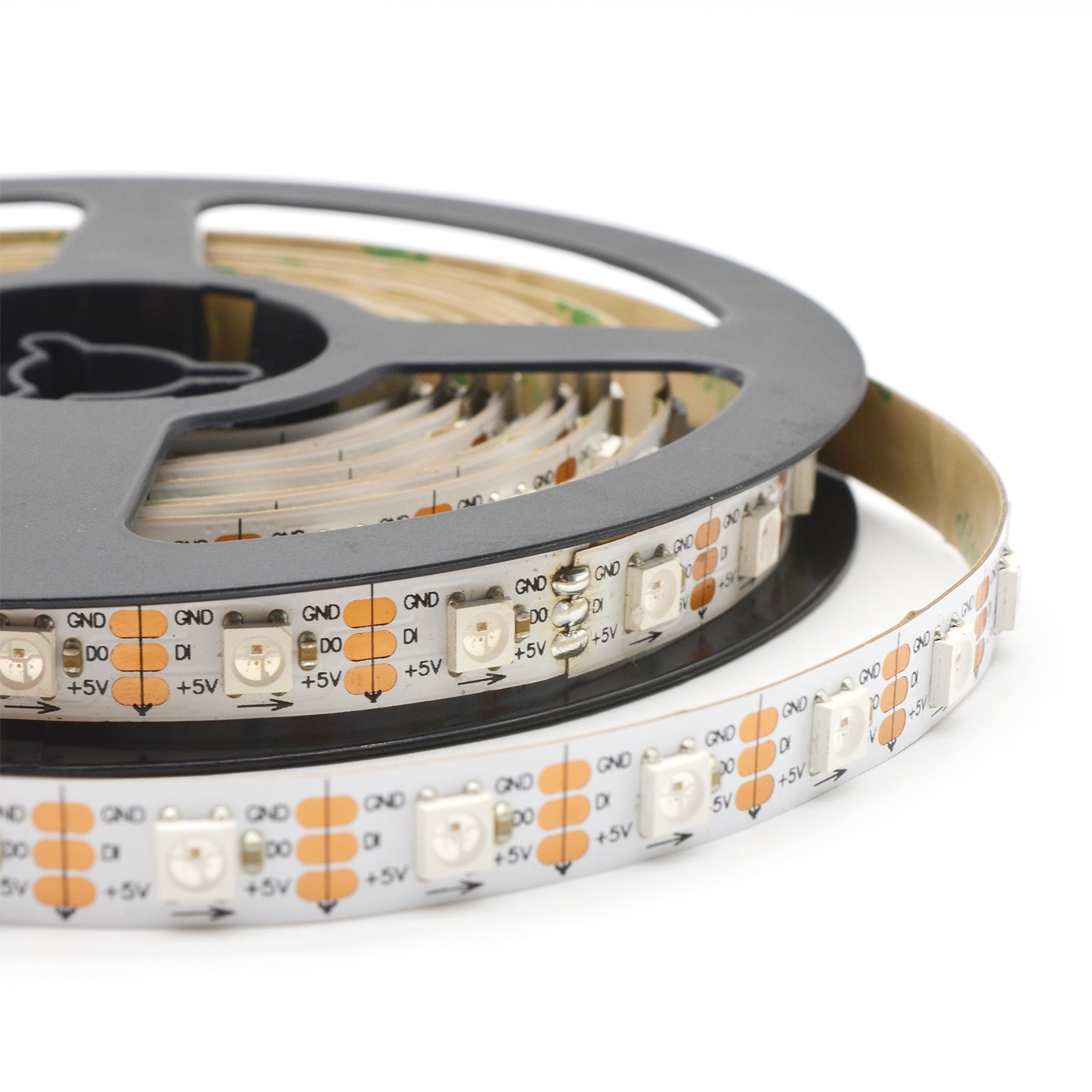

The LED strip is self-adhesive on the back and comes on a 2 meter reel with an IP20 protection rating.

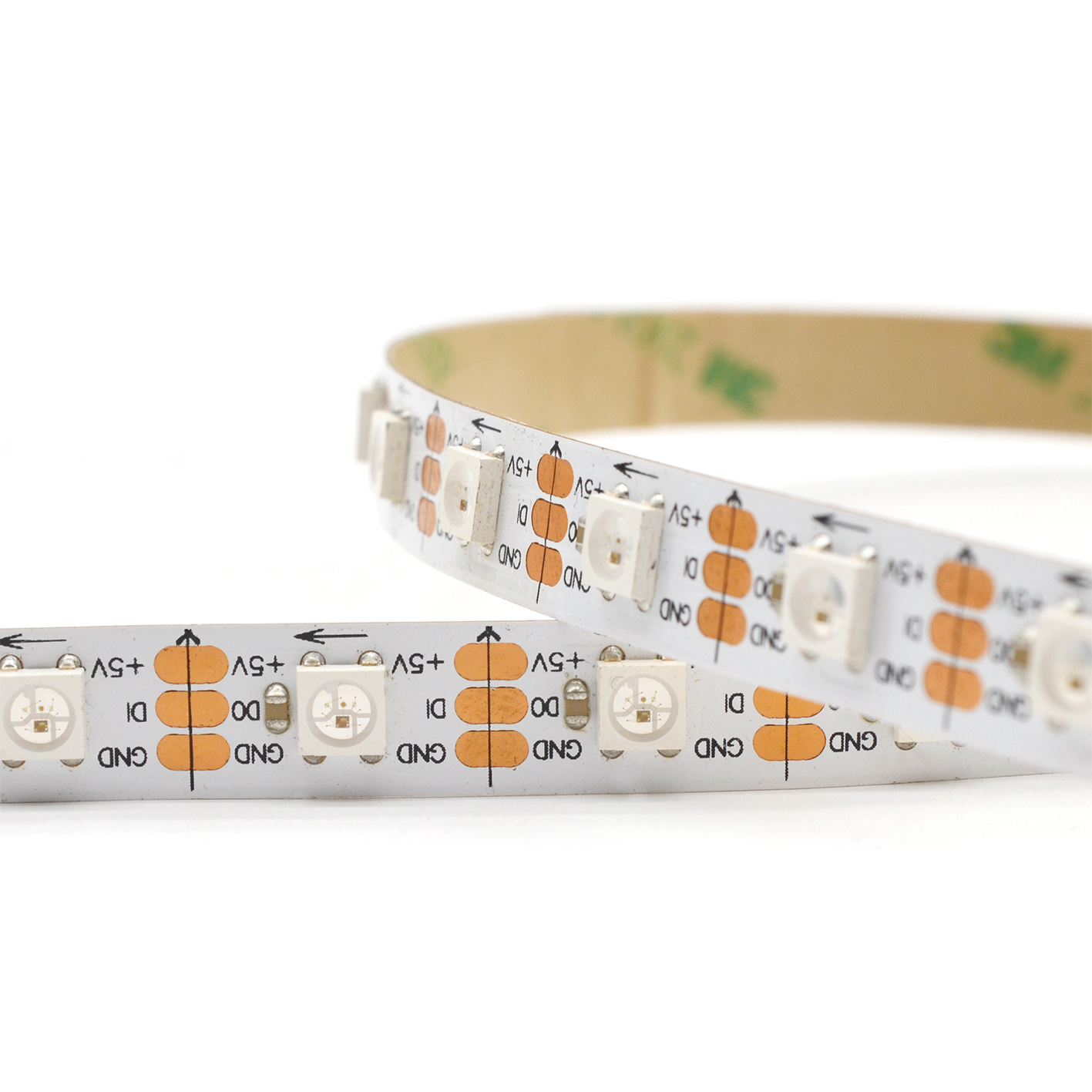

It is possible to cut the strip at each LED chip, allowing for greater flexibility in the length of the strip.

The wires of the LED strip are made of high quality copper and have excellent conductivity, which ensures stable and uniform illumination. The outer layer of the strip is made of PVC, which makes it eco-friendly and durable, and provides it with a very long service life.
