SMD5050 RGB Breakpoint Transmission LED STRIP SERIES
Features
Programmable RGB WS2818 LED strip is a 3-channel addressable strip, controlled by dedicated LED controllers
3 LEDs in series as one pixel, pixel is individually addressable
Signal break-point continuous transmission, any single failure pixel neither affect the other pixels nor overal display affect, nor waveform distortion
Working voltage is DC12V, max 14V
Transmission distance is 5 meters between any 2 pixels
Signal is a serial double-wire cascade interface, which is transmitted through two signal lines
- SKU NO.
- YR-ST-LV12-W12-60-RGB-Pixel
- Voltage
- DC12V
- Power
- 7.2W/m
- Colour
- RGB Pixel
- LEDs/M
- 60 LEDs/M
- IP Rating
- IP20
- Working Temperature
- -25°C~+60°C
- PCB Wideth
- 10mm
- Warranty
- 3 Years
Description
WS2818 LED strip is a 12v/24v economic programmable led strip with the feature of signal break-point continuous transmission, which means the signal will continue transmission even if some single pixel is broken.

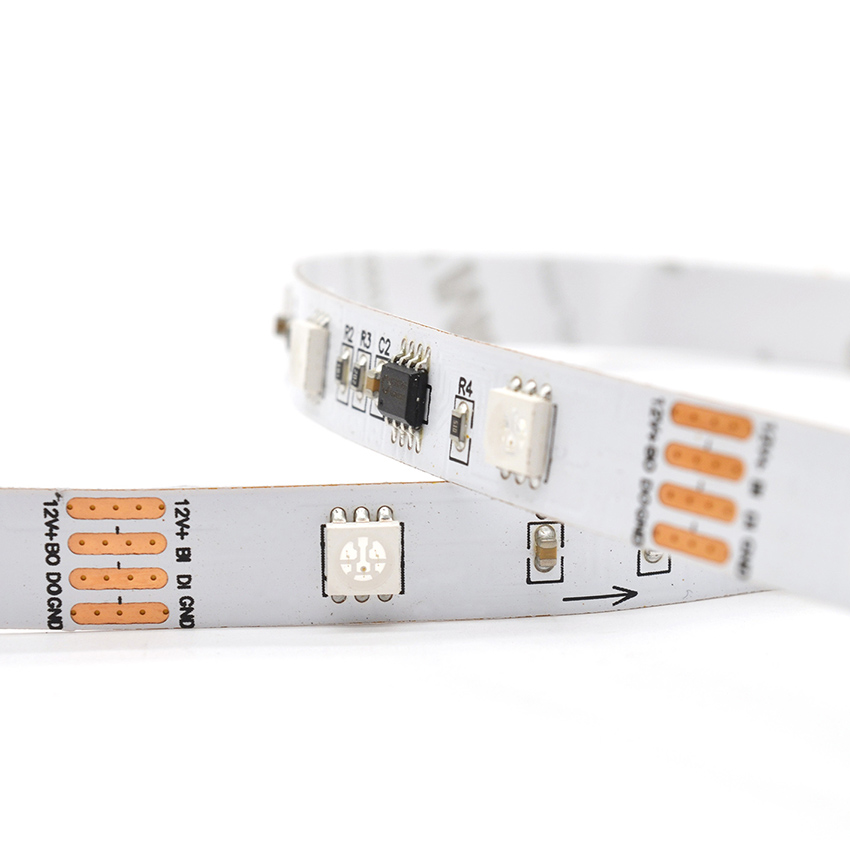

Every 3 LEDs are controlled by one external WS2818 chip as one single pixel, every 3 LEDs are cuttable.
The advantage of WS2818 LED Strip
- Signal break-point continuous transmission .
- When one of the pixels is broken,it does not affect another led work.
- With the controller,any flash effect can be achieved.
- The price is close to WS2811,but has breakpoint continuous transmission more than WS2811

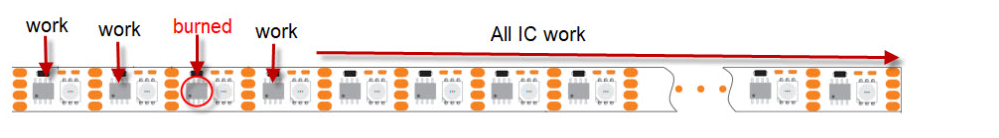

Break Point Signal Resume
More about the WS2818 LED Strip
WS2818 light bar for RGB three-channel phantom light bar, LED driver dedicated control circuit.2, 3 LED beads in series to form a single pixel point, can be individually point control.
Break point continuity, the light bar any one pixel point damage does not affect the other pixel points, while not accruing the line waveform distortion.
Voltage 12V power supply, maximum withstand voltage 14V.
Any two pixel transmission distance of 5 meters (the specific transmission distance to the site signal line and environmental interference varies).
Signal is serial double signal line cross cascade interface, transmission through cross signal.
PWM console can be adjusted to 256 gray levels, a total of 16777216 luminous colors can be adjusted.
when the refresh rate of 30 frames / second, the number of low-speed mode cascade not less than 512 points, high-speed mode cascade not more than 1024 points.
