IP65 WATERPROOF Flex LED Strip RGB+CCT 5-in-1
Features
- RGB+CCT (5 colours in one LED). Pastel colour shades and adjustment of the colour temperature possible.
- IP65 Glue Dropping Waterproof series
- High flexibility – adaptable to round shapes.
- Installation with 3M adhesive tape on the strip’s backside (self adhesive).
- dimmable, autom. colour change, controllable via DMX 512, DALI, 1-10 V by MULTI power supplies/controller
- SKU NO.
- YR-ST-LV24-W12-60-RGB+CCT-IP65
- Voltage
- DC24V
- Power
- 24W/m
- Colour
- RGB+Tunable White
- LEDs/M
- 60LEDs/M
- CRI
- 80
- IP Rating
- IP65
- Min Cut Unit
- 100mm
- Efficiency
- 80Lm/w
- Working Temperature
- -25°C~+60°C
- PCB Wideth
- 12mm
- Warranty
- 3~5 Years
Description

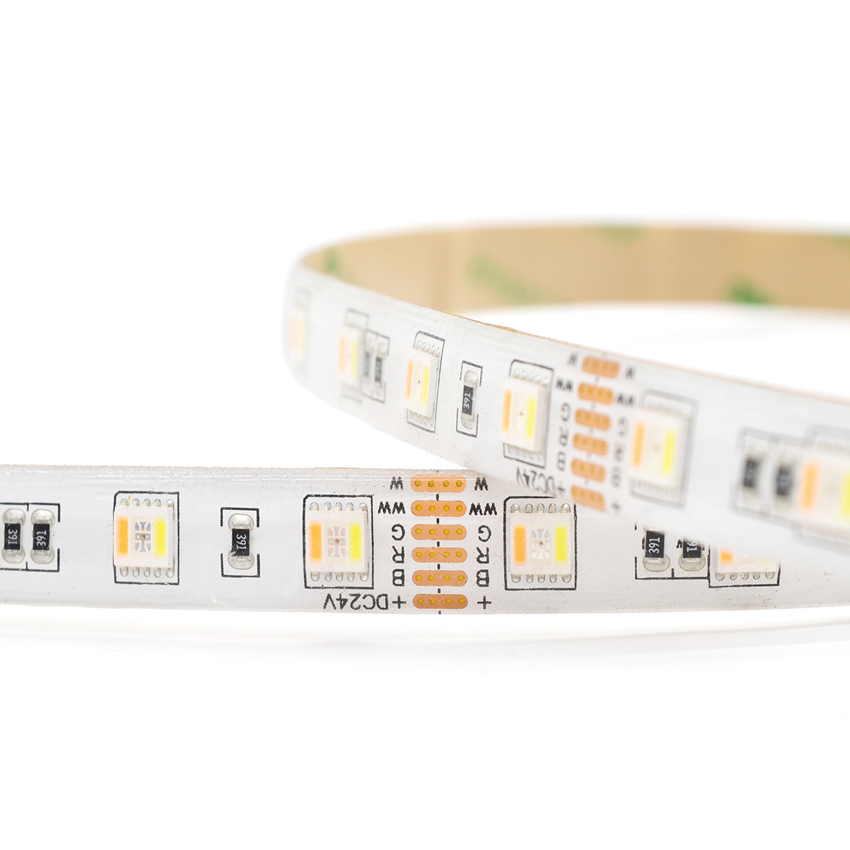

RGB + tunable white LED strip powered by Epistar 5in1 LED chips, designed to high specifications for professional installations
Our 12mm LED strips are powered by 3oz high copper flexible PCB, which makes it possible to maintain a cooler operating temperature despite very high brightness.
6 wires, 5 channels Tunable RGB + white LED strip, 24 watt - 1500 lm per metre.
Black= +, Red= Red, Blue=Blue, Green= Green, Yellow = Warm White, White = Cool White
Note: While any type of LED strip will perform better when installed in a profile or on an aluminium flat bar, due to the nature of high-powered SMD chips running warm at 15 watts per metre and above, we strongly suggest that you consider installing this LED strip on an aluminium bar at the very minimum, in order to ensure proper cooling and thus increasing its lifespan. Always consult with your installer, as it may come down to their discretion, depending on how cool and well-ventilated the area is. Don’t risk burning out any chips!

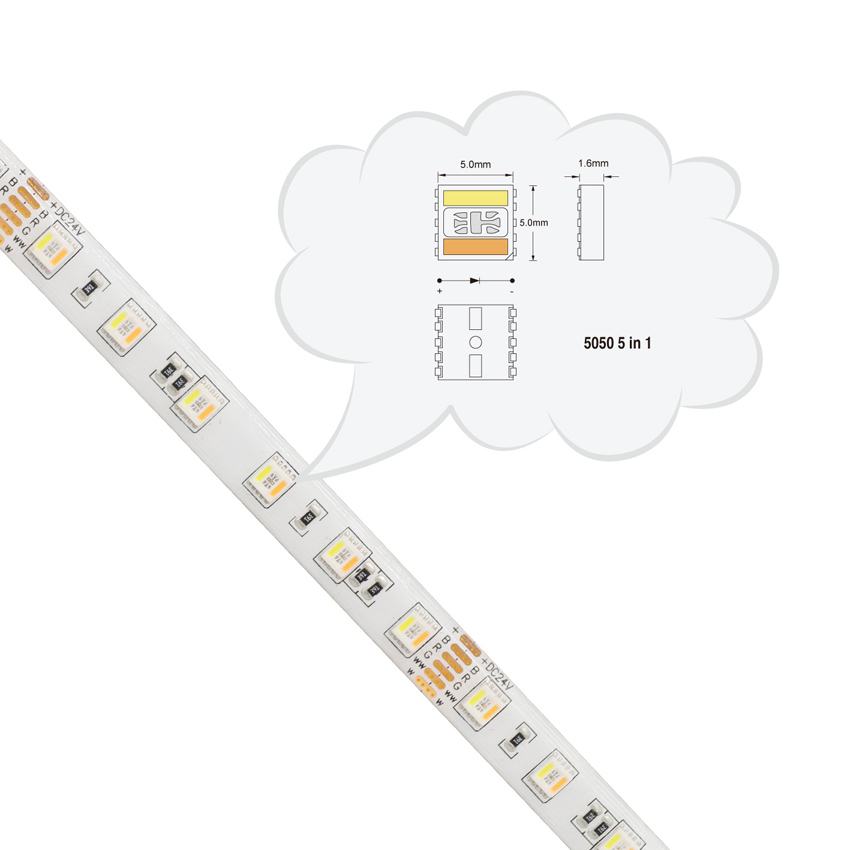

5 in 1 RGB dynamic LED strip for full colour spectrum plus adjustable colour temperature via tunable white from 2700 to 6500K
CRI Ra >80 LED chips, 60 LEDs per metre 24V @24 W/m (60 x 5in1 tunable LED chips per meter)

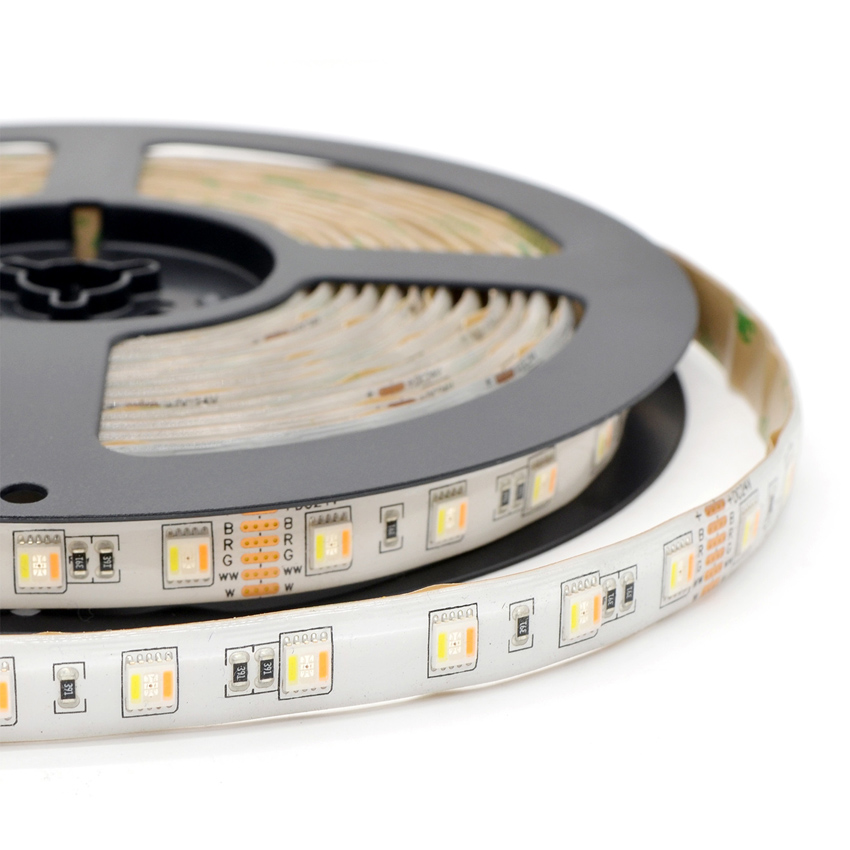

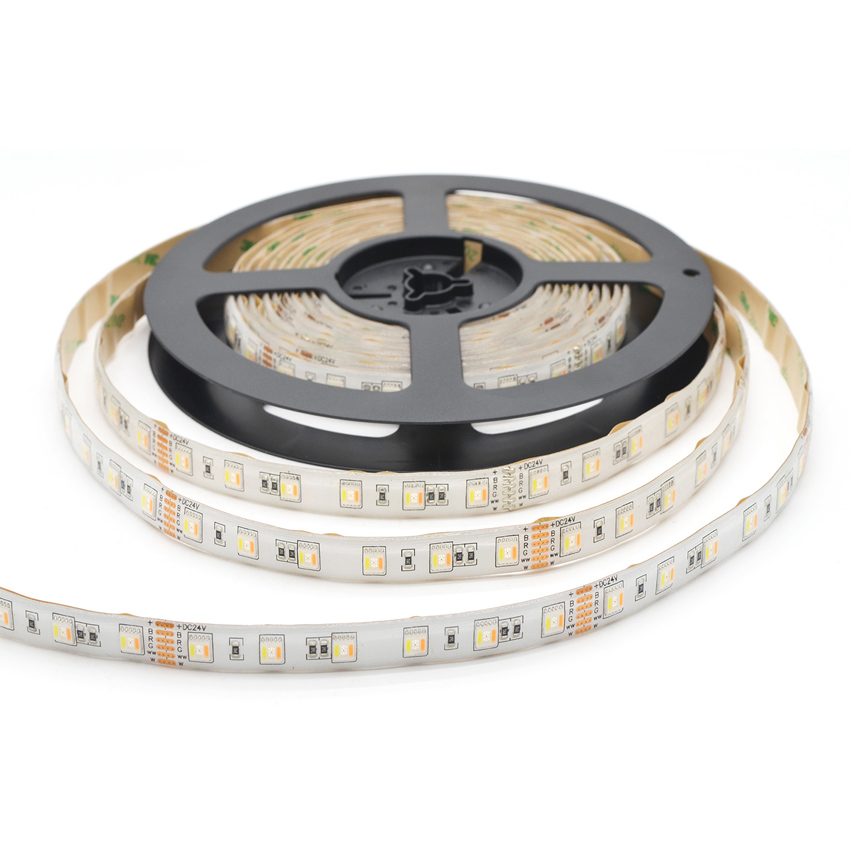

5m roll (12mm wide FPC - IP65), Glue dropping on the LED strip to make sure IP65 waterproof
Pre-soldered 6 core wires 15cm (both ends of the 5m roll)
Cutting length is every 6 LEDS (10cm)
3M self-adhesive tape at the back for easy mounting
*5-year warranty:
