led light Flexible sheet rgbw
Features
- RGB with 3000K white light – 4 in 1 LED chip
- 11.5W/Sq. Ft
- 24VDC
- 90+ CRI
- Dimmable
- 144 LEDs with 1” spacing
- New convenient size 12x12in = 1 Sq. Ft
- Connectible via integral push-in connectors
- Multiple control options: Wireless or RF Remote or DMX512
- 3M Double-sided tape for mounting
- 3M tape, staple or screw mounting options
- For indoor use only

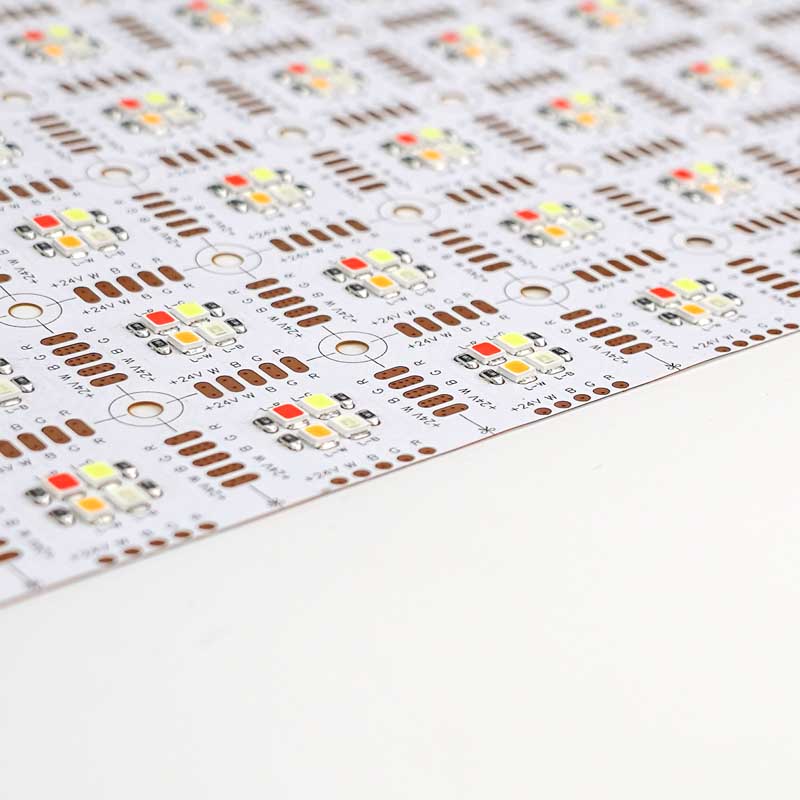

- Tight diode to diode spacing for even illumination and no hot spots
- SKU NO.
- YR-LST-LV24-1212-RGBW
- Voltage
- DC24V
- Power
- 42W/M2
- Colour
- RGBW
- CRI
- >90(For white light Only)
- Size
- 12"*12"(300*300mm)
- IP Rating
- IP20
- Efficiency
- >90 Lm/w(For white Light Only)
- Working Temperature
- -25°C~+60°C
- Warranty
- 3 Years
Description
RGBW 24VDC Configurable Sheet
RGBW is a 24VDC flexible light sheet that can be cut in the field into geometric or irregular shapes, creating limitless illumination for signage, light panels, columns, retail display, backlighting and themed lighting applications. The Sheet is connectible via integral push-in connectors. Easy installation with no heat sink required.
24VDC Configural Laminated Sheet

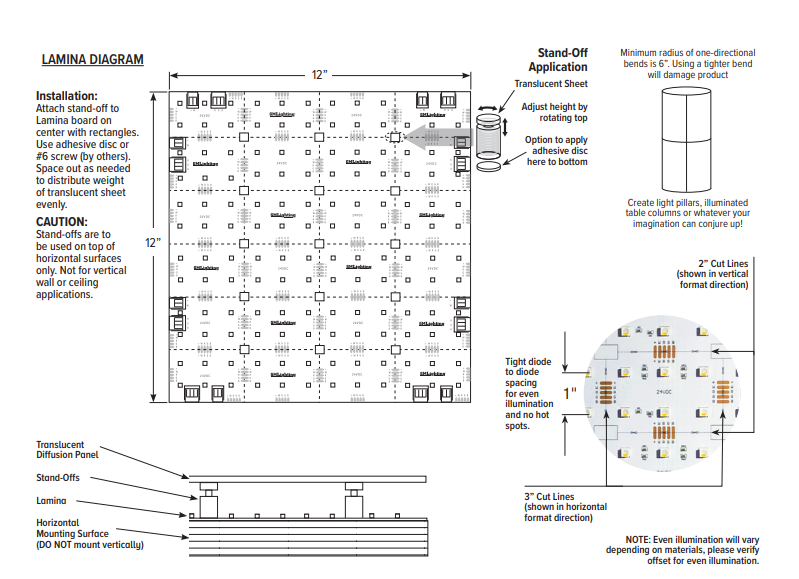

MULTIPLE PANEL CONNECTION DIAGRAM
