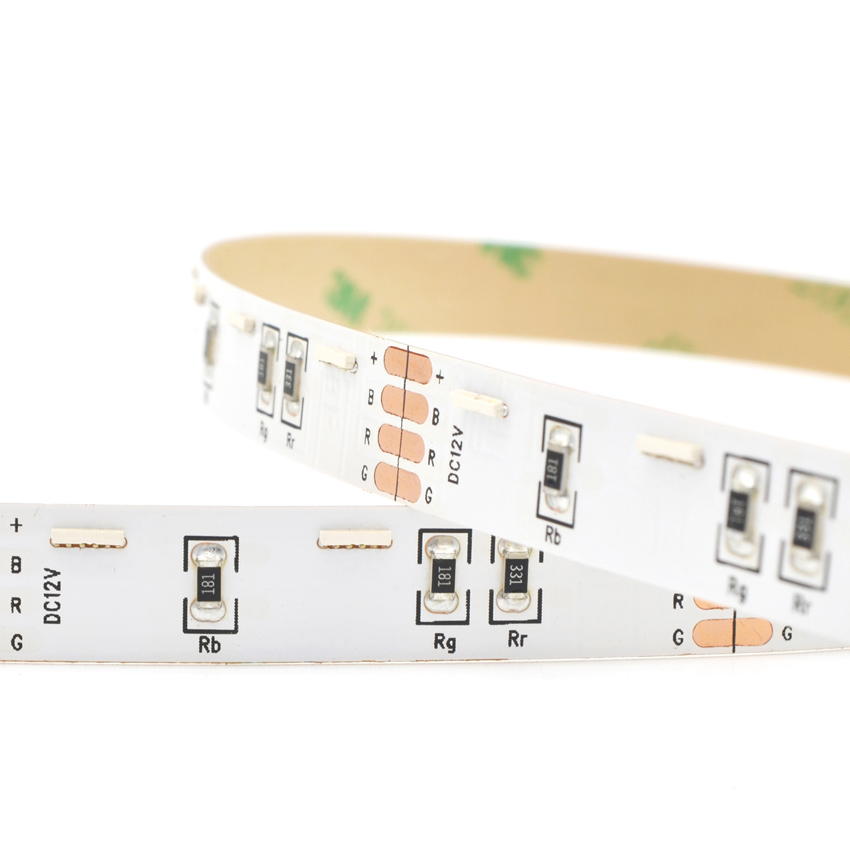

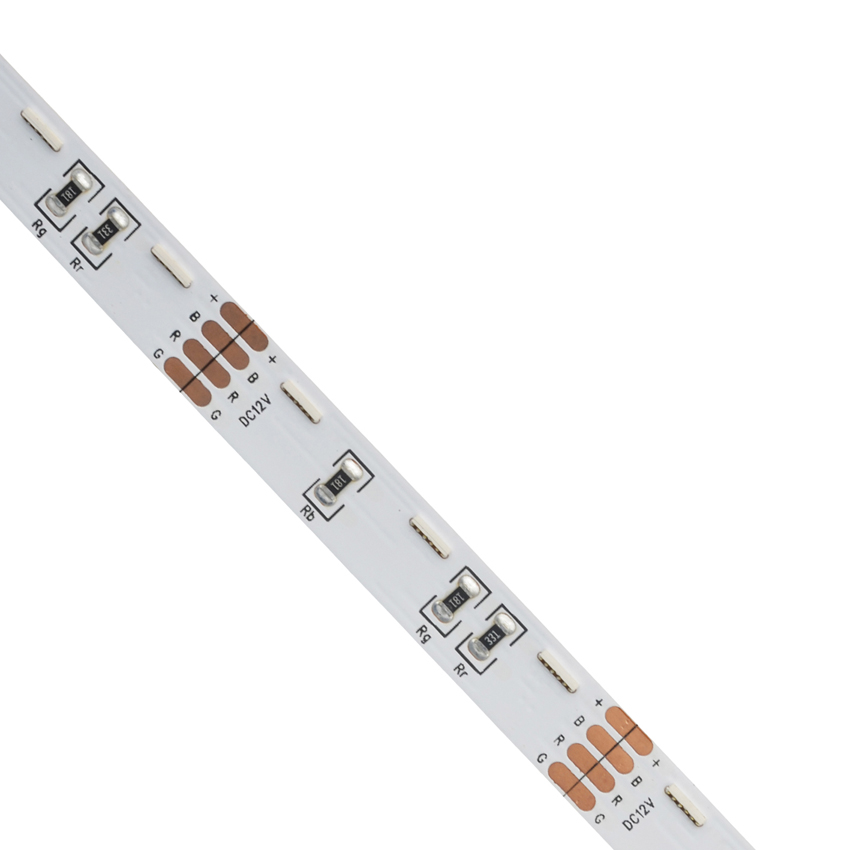

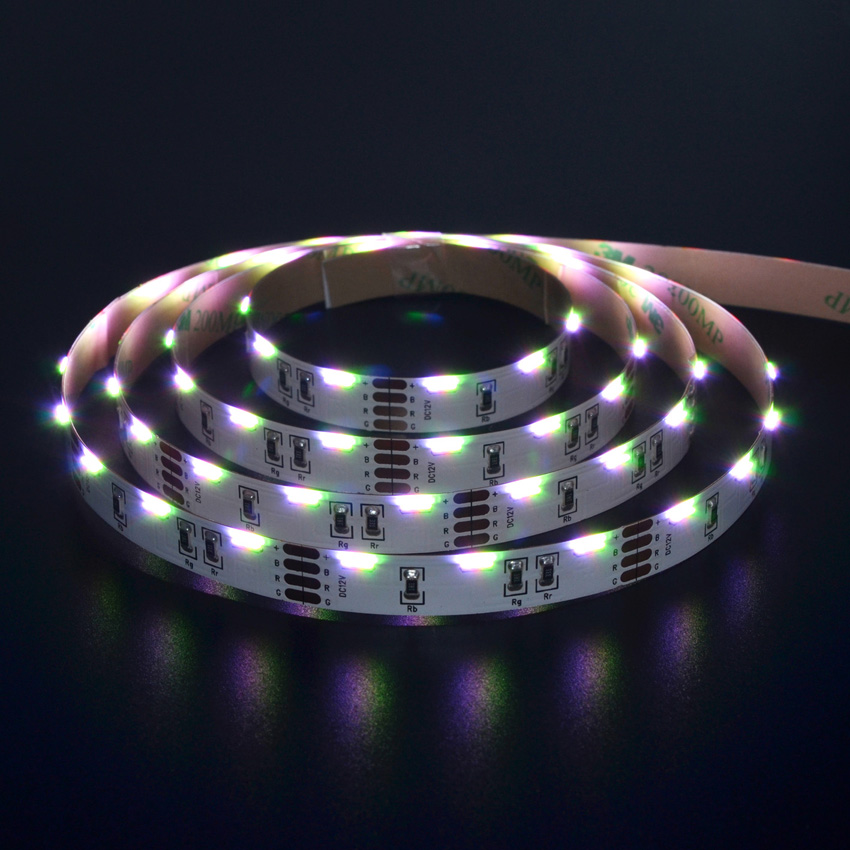

SMD020 SIDE VIEW RGB LED STRIP SERIES
Features
*FPCB with 35um cooper with double layer for FPCB ,
* red cooper bracket and 99.9% gold wire for the RGB led chip ,(high CRI 90 for white led chip)
*2 sides membrane cover the pcb board. make sure the copper no drop from the pcb board .
*It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length available .
* Installing : screw+silicon clip and 3M adhesive on back side for sticky
- SKU NO.
- YR-ST-LV12-W10-60-RGB-Side
- Voltage
- DC12V
- Power
- 12W/m
- Colour
- RGB
- LEDs/M
- 60LEDs/M
- IP Rating
- IP20
- Min Cut Unit
- 50mm
- Working Temperature
- -25°C~+60°C
- PCB Wideth
- 10mm
- Warranty
- 3 Years
Description
Considering the SMD020 RGB LED is the smallest size of side emitting led strip on the market, that is to say
our 12v 24v SMD020 RGB LED Strip is the smallest side view rgb led strip at moment.
LED Type :020 SMD
Color: RGB Side view
LED Quantity: 60leds/Meter, 120leds/Meter
View angle:120°
Working Input Voltage: DC12V or 24V
