SMD5050 RGB+W LED STRIP SERIES
Features
- RGB+W (One 5050RGB+ One 5050 White LED). Pastel colour shades and adjustment of the colour possible.
- Cost effective than 4 in 1 RGBW LED Strip
- High flexibility – adaptable to round shapes.
- Installation with 3M adhesive tape on the strip’s backside (self adhesive).
- dimmable, autom. colour change, controllable via DMX 512, DALI, 1-10 V by MULTI power supplies/controller
- SKU NO.
- YR-ST-LV24-W12-60-RGB+W
- Voltage
- DC24V
- Power
- 14.4W/m
- Colour
- RGB+W(2700~6500K)
- LEDs/M
- 30 5050 RGB LEDs/M+30 5050 White LEDs/M
- CRI
- >90(For white color only)
- IP Rating
- IP20
- Min Cut Unit
- 100mm
- Efficiency
- >90Lm/w(For white color only)
- Working Temperature
- -25°C~+60°C
- PCB Wideth
- 12mm
- Warranty
- 3 Years
Description
The solution to the low-quality, blueish and dim white light that is normally created by RGB+W LED strips is here, and is even more improved than ever before. Replacing the 4-in-1 chip package, our Vivid-Color and True White 24V RGB+W LED Strip features a high-output white chip separate from an RGB chip allowing for a stronger lumen output, and ultimate efficiency. Create millions of different colors using the red, green, and blue chips, yet produce true, vivid white through the premium, phosphor coated white chip. Easily cut, peel, and stick the flexible RGB+W light tape to your mounting surface using the durable 3M® adhesive backing. Achieve a long lifetime of useful RGB and true white LED lighting when used with one of our aluminum profiles for LED Strips to draw out the heat and protect the strips from damaging elements, maximizing their lifetime.

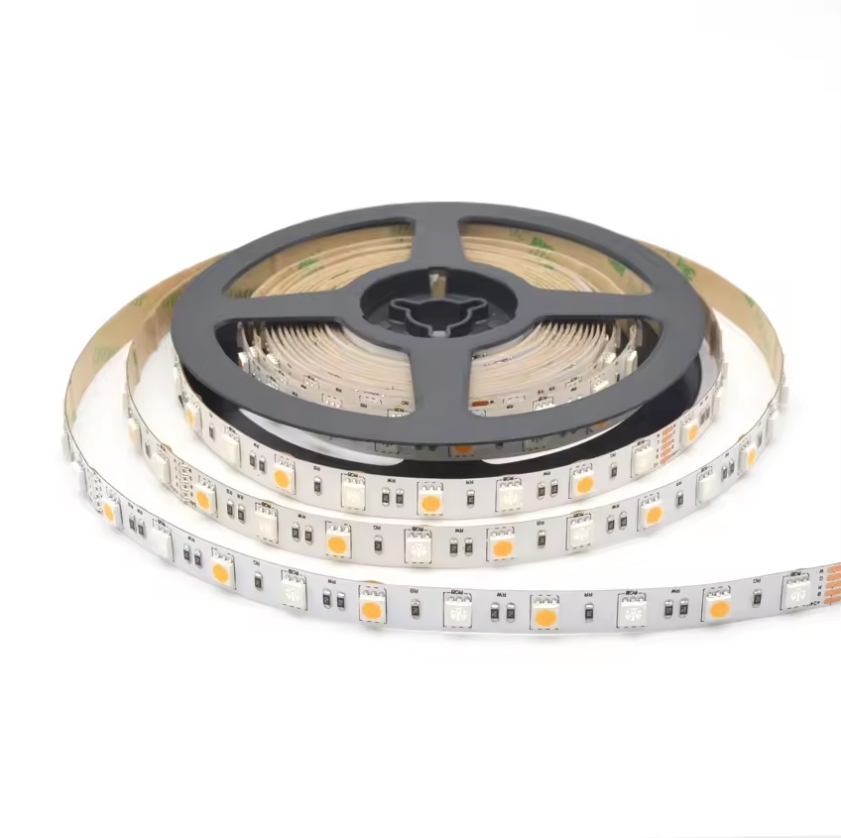

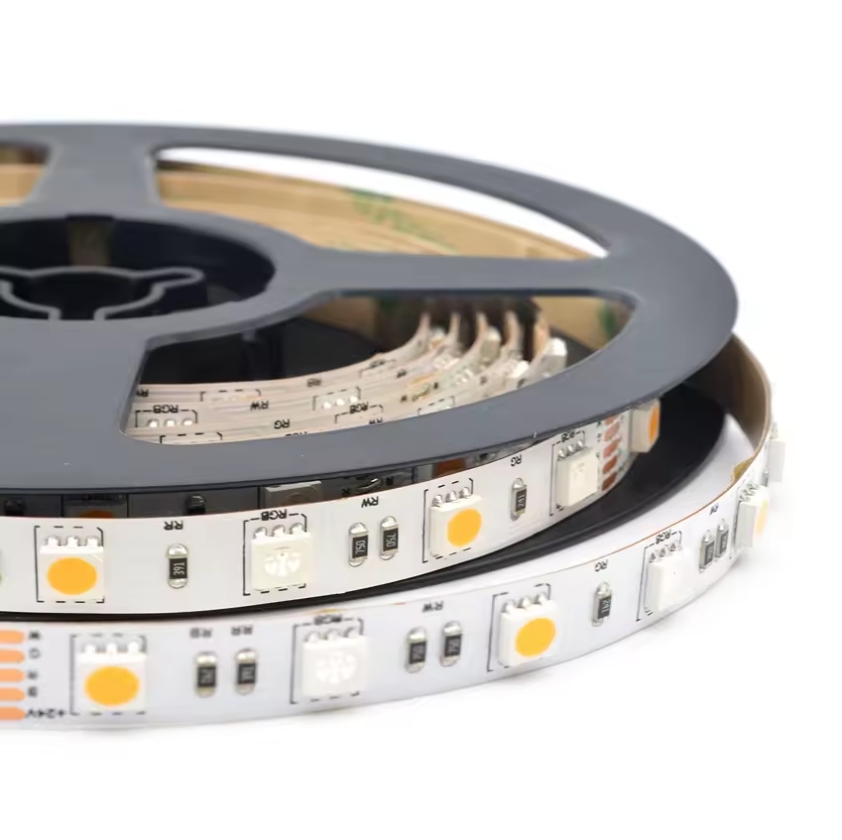

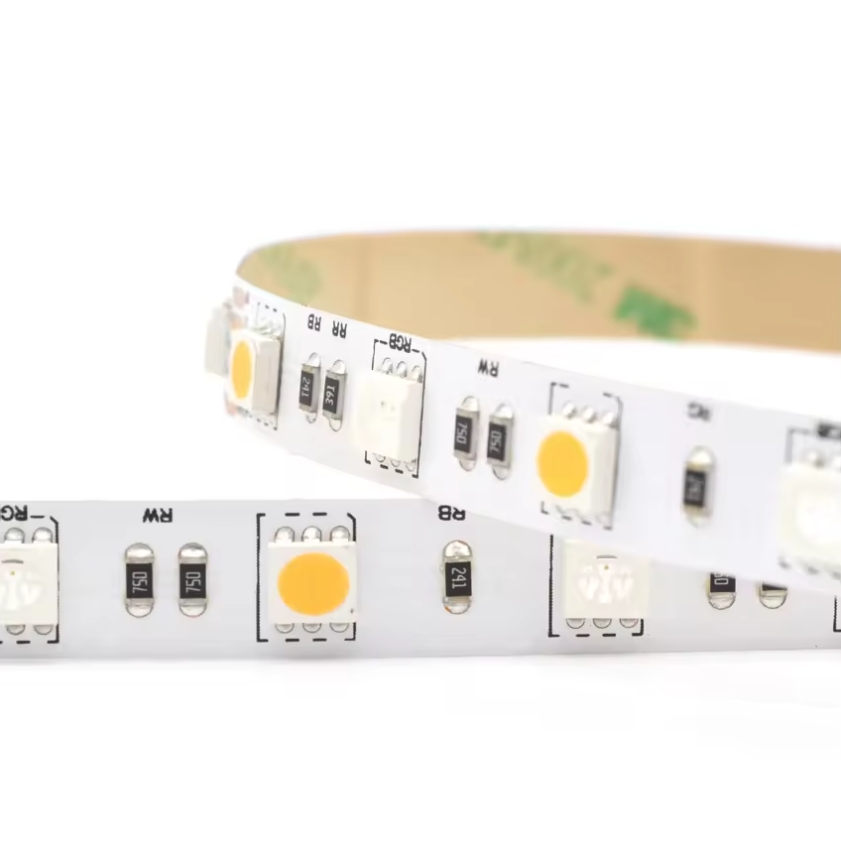

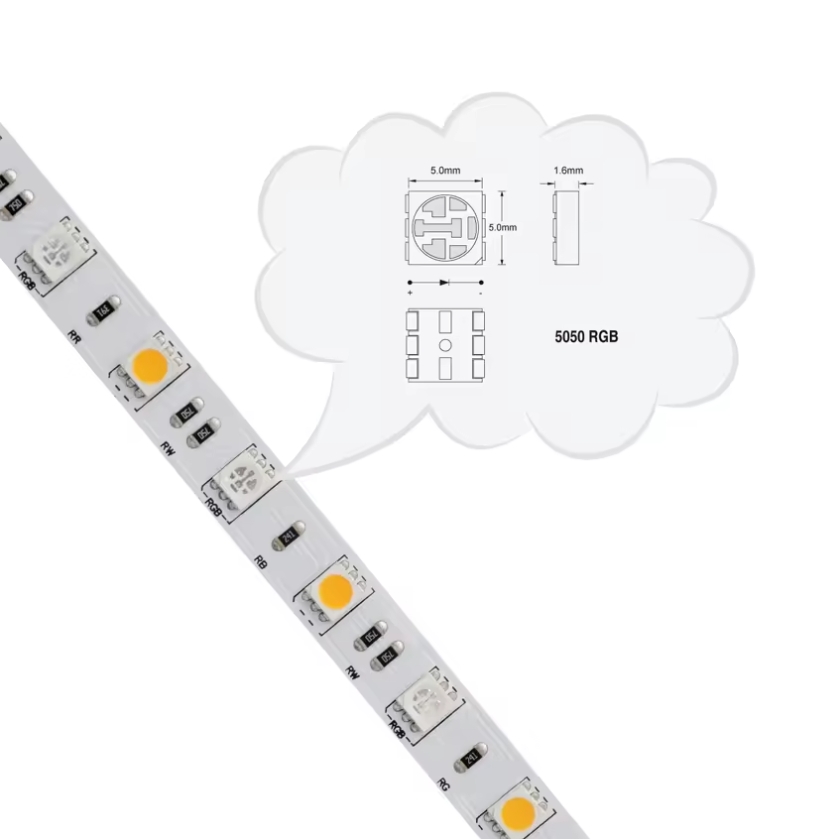

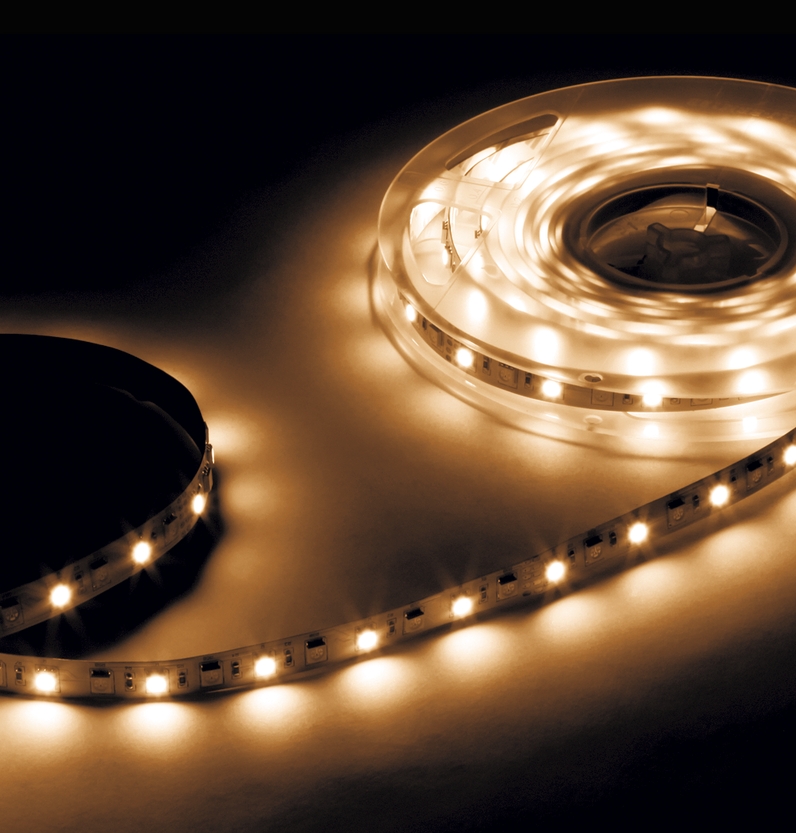

The 24V RGB+W LED Strip comes in a 16’5” roll/reel and is 0.47” (12mm) wide. 5050RGB and 5050 Whites LED chips are mounted side by side on a flexible PCB every 0.19” apart. The full LED strip spool has about 300 LEDs packed in a medium-density—60 LED/M—configuration. The LED strip comes with (1) 6” 18-5 wire lead with bare, tin-coated ends, for fast and reliable wire-to-wire connections. This LED Strip can produce millions of different colors through a controllers and is available with either a soothing 2700K white or 6500K bright white configuration. The 24V RGB+W LED Strip consumes an average of 14.4 Watts/M. Effortlessly cut this LED strip every 100mm (or every 10 LED chips).

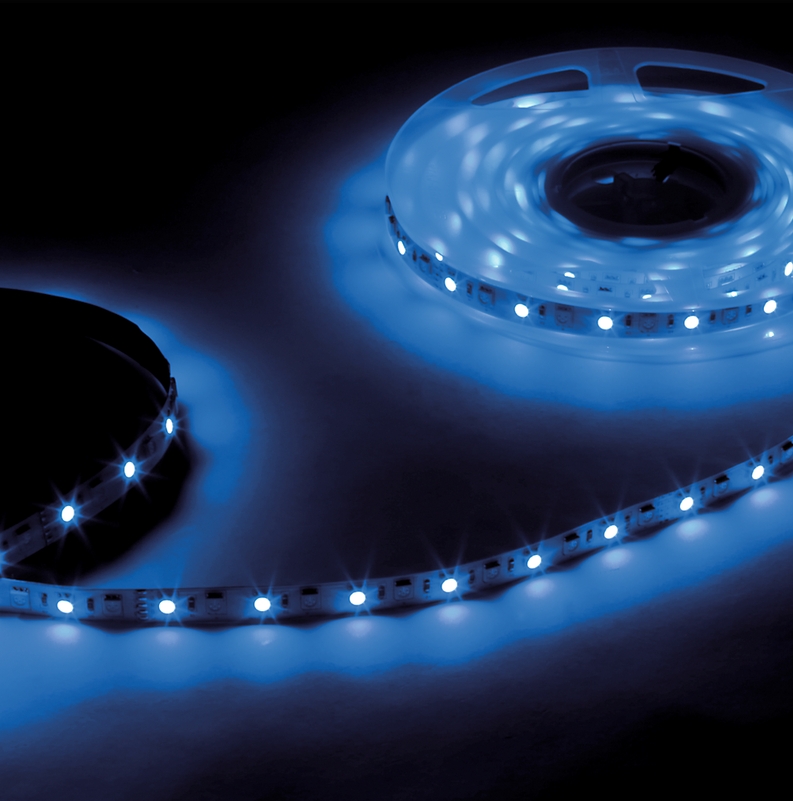

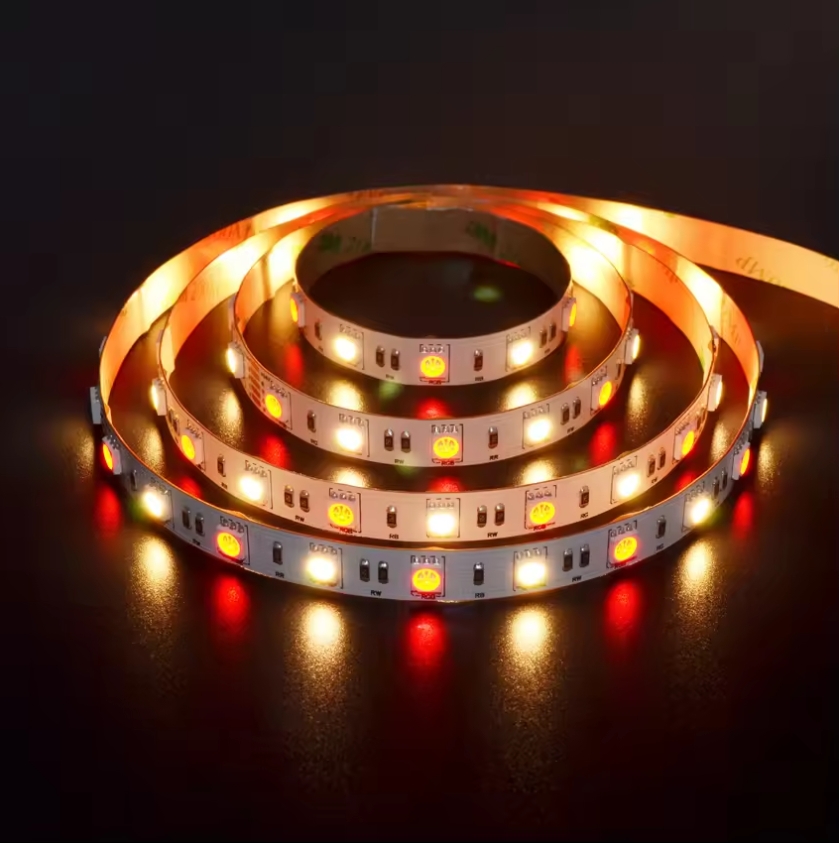

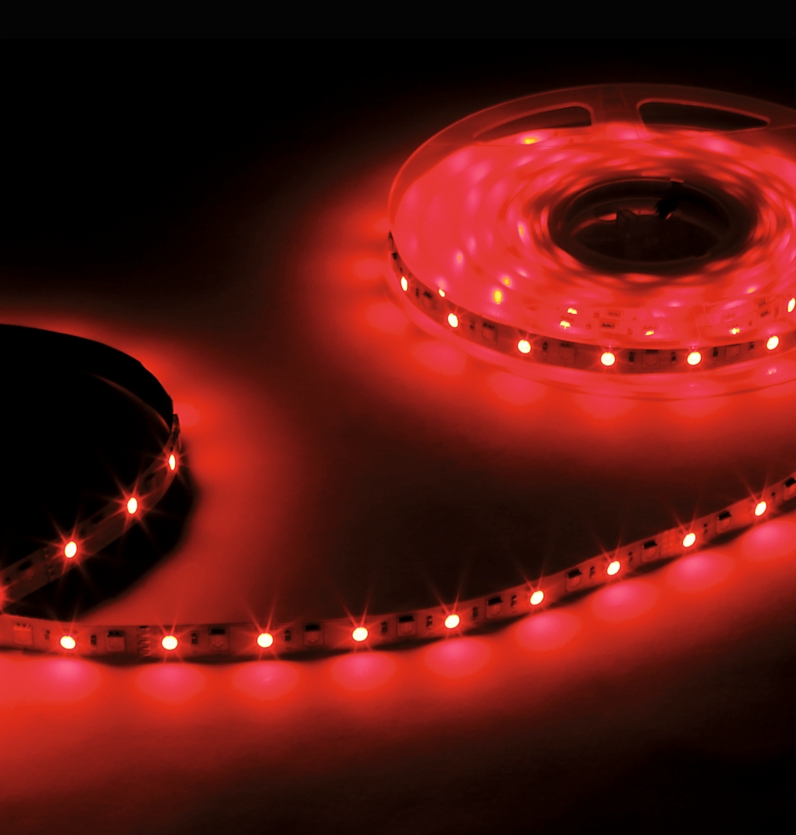

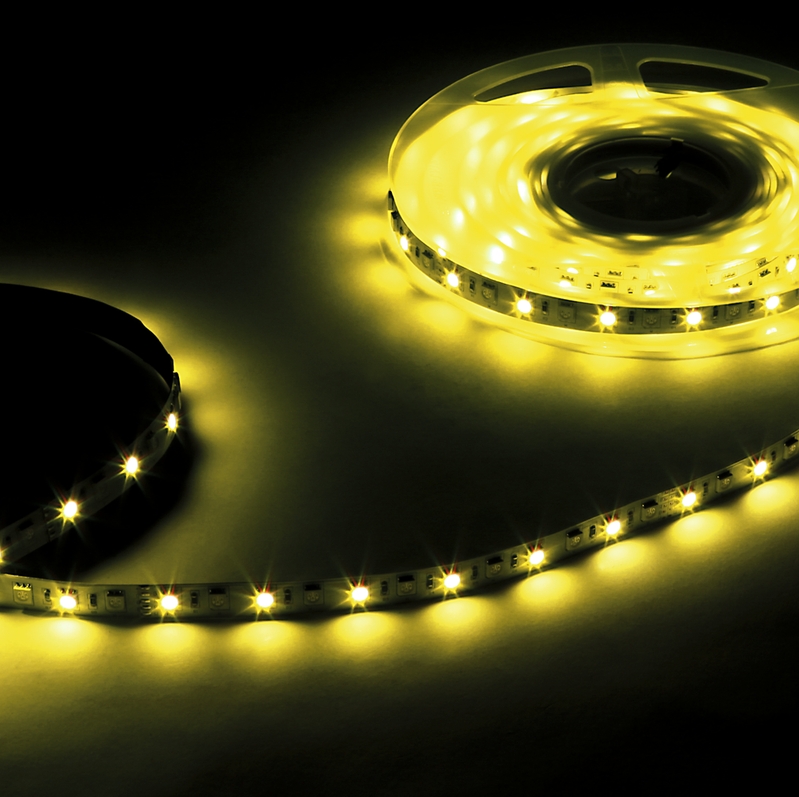

Our 24V RGB+W LED Strip can be used to create beautiful linear color changing RGB LED lighting, and switched to true white lighting when it is desired. The high light output makes this a great solution for cove lighting, RGB wall washing, and dance rooms. The integrated white LED chip means one can also use this under-cabinets, in closets, or in any applications where colored light and white light are both desired.
