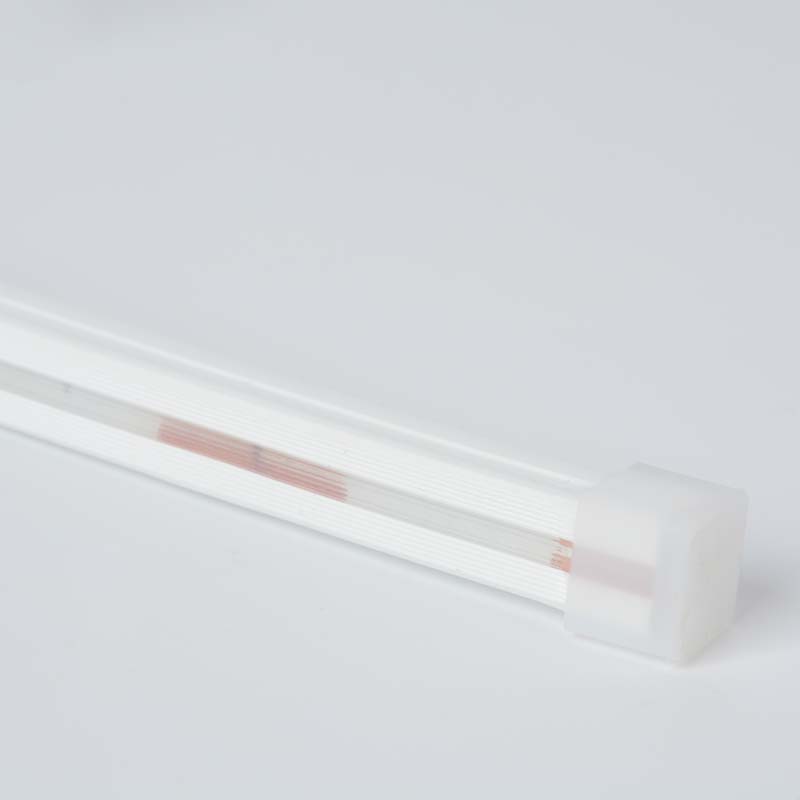

Waterproof 12x12mm LED neon flex /RGB Multi-color Changing Flexible neon light
Features
12*12 24v Flexible digital Neon Strip
Made of Silicon material;
Fire resistance, Anti - UV, Anti - Corrosion and deformation resistance;
Diffused color without any light spots, Emitting angle 180 Degrees;
Standard 5 meters/ reel, but can be customized within 50meters;
The cutting unit length is 50mm/24V per section;
JST SM connector on input and output side, SPI Control;
20 Pixels/Meter DC24V;
Waterproof IP65 Rated for outdoor installation
- SKU NO.
- YR-S-1212-LV24-120-RGBIC
- Voltage
- DC24V
- Power
- 15W/m
- Colour
- RGBIC Pixel
- LEDs/M
- 120 pcs/m
- Size
- W12*H12
- IP Rating
- IP65
- I Rating
- IK08
- Min Cut Unit
- 50mm
- Working Temperature
- -25°C~+60°C
- PCB Wideth
- 8mm
- Warranty
- 53 Years
Description
Attention: This is a digital addressable product that can only be used with a compatible digital controller(If you hope to know which controller works, do pls contact us by email or what's app)
This neon flex is made with individually addressable 'pixels' of sets of 6 LEDs, SPI Controlled,meaning it can be made to make some interesting jumping patterns of different coloured light all along it length. It can also be made to have a chasing effect up and down, from the centre out, or from outside to the centre etc. This makes for great party lighting and is fun to see going along in time to music!
LED neon flex emits a constant glow, simulating the effect of a neon tube but with the advantages of LED including long life and low power consumption. It is ideal for feature lighting in both home and commercial applications and is also great for signs.
This neon flex is constructed with an internal flexible circuit running 120 bright SMD LEDs per meter. The light is diffused by a series of internal diffusing membranes, so the neon flex gives a consistent glow along the entire length. It can be powered from a 24V DC supply, and consumes 15W per meter.

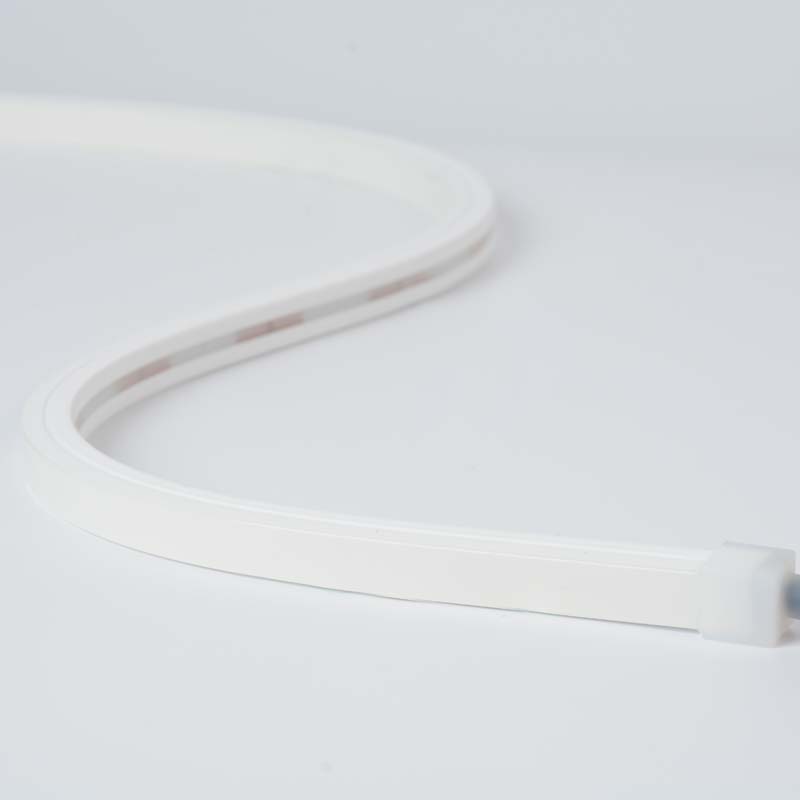

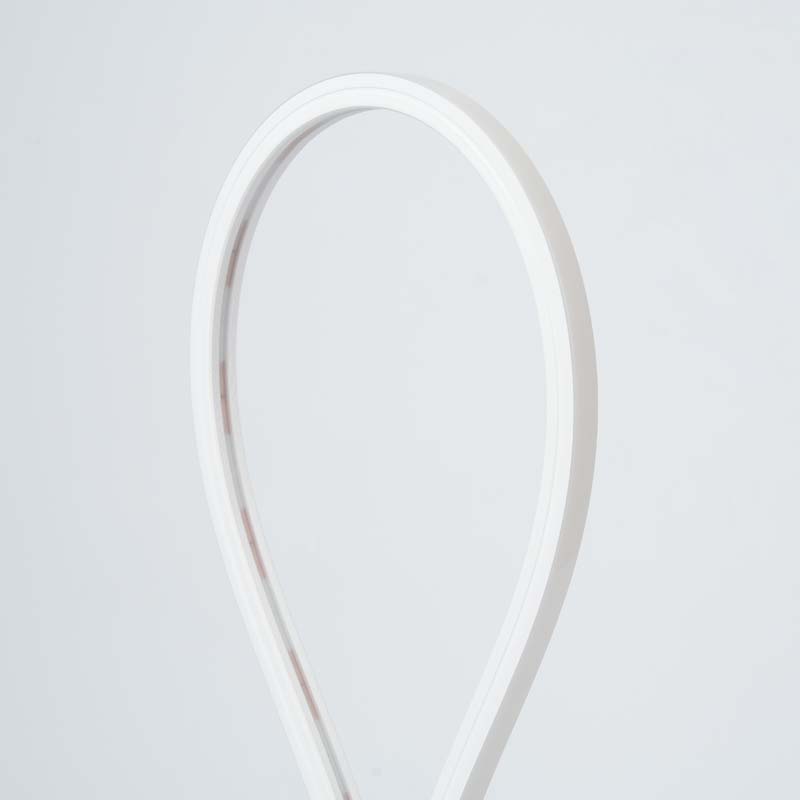

Purchase the exact length you require, or buy more and trim as required. The neon flex can be cut at 5cm intervals. It bends very well Topways or sideways, but not up and down.
LED neon flex is 50% brighter than incandescent lighting, and is a 100% solid state design meaning there is no glass or filaments that could break.
This digital flex uses the WS2811 IC(For other IC chips, pls inquire us)for communication, and so is compatible with controllers that specify that chip (please check your intended controller before purchasing). You can power up to 5m in a single length, however the signal can be carried through to following lengths that are powered separately, up to a total length of ICs that the controller you are using can support
If you are cutting or trimming the digital neon flex, purchase a pair of end caps to re-seal the ends.
PLEASE NOTE: THIS DIGITAL PRODUCT IS DIRECTIONAL - THE DATA WILL ONLY RUN ONE WAY ALONG THE FLEX, SO THE POWER/CONTROLLER MUST BE CONNECTED AT THE CORRECT END.
