D16 Addressable & Programmable Digital RGB Flex LED Neon Strips

Description

Digital LED Neon Flex is very flexible and suitable for applications where a LED Line needs to be placed in plain sight and when you want to create curves, such as a light-line in the floor, in a wall, or for example in signage! The light is completely diffuse thanks to the opaque potting, which means that the individual LED dots are not visible and LED Neon can be placed in direct sight.

Digital LED Neon flex is made up of a very flexible silicone U-shape profile with a regular LED strip inside. The profile is filled with opaque potting. Neon Flex can be cut every 5cm, and the power is supplied via the soldering points which can be found on the LED strip inside.
Applications: Signage, route-marking, stairs, light lines in garden, restaurant or in the home.

Digital LED Neon with addressable LEDs.
This D16 LED Neon contains a digital LED Strip with addressable LEDs. The Digital LED Neon contains 120 LEDs per meter. There is an IC located on the strip every 6 LEDs, so the digital neon can be addressed in groups of 6 LEDs. This gives a total of 20 pixels per meter. This revolutionary Digital Flexible LED Neon can be used to create beautiful light sculptures and shapes, and can display special light effects such as rainbow or chasing lights. You can also program your own light programs using a programmable digital LED Strip controller. This is truly the most flexible LED product out there!

Voltage: 24V. Our LED Neon flex works according to the same principle as our normal LED strip, and therefore can be used with all our power supplies and digital controllers.

This Digital LED Neon requires the use of a Digital Controller. It works on 24 Volts, so to connect it to a 110-230V power outlet you will also need a power supply. Please see the category Accessories - Power Supplies for this. The more LED Neon you want to connect, the higher the power consumption will be and therefore the bigger the power supply must be. Look below for an indication of which power supply to use with this LED strip:

10cm - 2 meters: Power Supply 36 Watt
2 meters - 3.3 meters: Power Supply 60 Watt
3.3 meters - 4.6 meters: Power Supply 84 Watt
4.6 meters - 6.6 meters: Power Supply 120 Watt
6.6 meters - 11 meters: Power supply 200 Watt
11 meters - 22 meters: Power Supply 400 Watt
More than 22 meters: Use multiple power supplies in combination with an RGBW amplifier or contact us for advice and price.

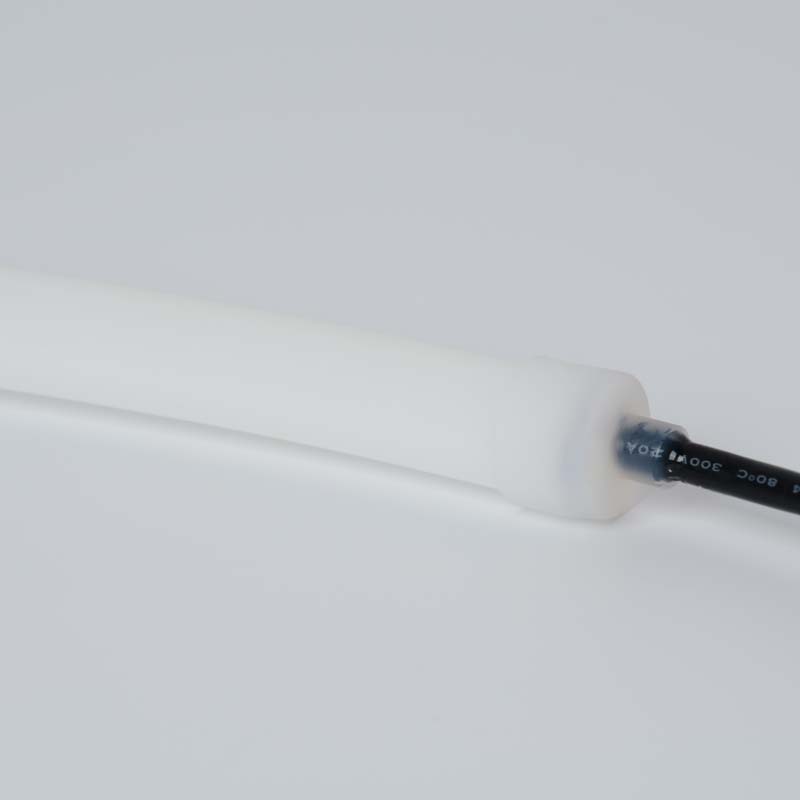

Soldering: Delivered with a cable to connect to the Digital Controller. This connector needs to be soldered onto the LED strip inside the LED Neon flex tube. If you do not know how to solder: no problem, we can do this for you. Add "soldering service for flexible LED Strips" to your shopping cart and we will do all the necessary soldering for you.

Cutting and mounting: This D16 LED Neon Flex can be cut to size every 5cm. After the LED Neon is cut, the ends need to be made waterproof again. You can do this using end caps and silicone glue, sold separately. We also sell mounting clips separately.

For more information on how to connect LED Strips, please contact us directly
