SMD2835 DUAL WHITE LED STRIP SERIES

Features

LED adopts 2835 SMD lamp beads, through LM-80;
FPC adopts double boards, double-sided covering film, copper thickness of 2~3 ounces;
good color consistency, color tolerance <5;
DC24v power supply;
2700-6500K color temperature adjustable;
warranty 3 Year

SKU NO.
YR-ST-LV24-W10-120-CCT
Voltage
DC24V
Power
18W/m
Colour
Double White tuneable
LEDs/M
120 LEDs/M
CRI
90
IP Rating
IP20
Min Cut Unit
50mm
Efficiency
100Lm/w
Working Temperature
-25°C~+60°C
PCB Wideth
10mm
Warranty
3 Years

Description

LED strip of 24V, 90W and dimmable color temperature, thanks to its CCT system.

It is extremely versatile, since it allows to regulate the tone from warm white to cold white on a scale from 1800K to 6500K. In addition, it is very flexible and can be cut every 10 cm, so it adapts to multiple lighting projects.

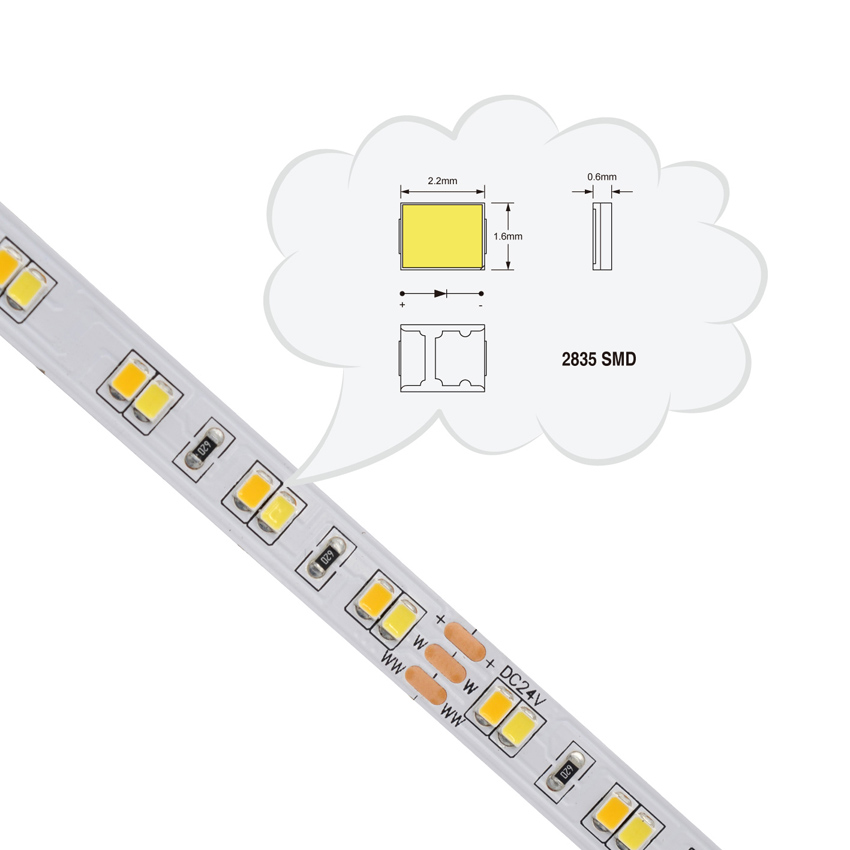

It has high quality SMD2835 LED chips with a density of 120 chips/meter.

It has a beam opening angle of 120º and a high color rendering index(CRI>85), which allows it to faithfully reproduce colors, similar to natural light.

Due to its characteristics, it is ideal for installation in places where high brightness is required.

24V-DC 90W LED Strip - dimmable color temperature CCT - 1800-6500K - SMD2835 - 5 meter roll

This 24V LED strip is designed according to the highest quality standards, incorporating the latest generation LED technology that allows it to emit a very powerful and homogeneous light. It incorporates the CCT system, which allows you to adjust the color temperature of the light between: warm white, neutral white and cool white, from 1800K to 6500K.

High power and low consumption

Thanks to its high power of 90 W (18 W/meter), this LED strip is suitable for covering large spaces. It also has a high luminous intensity of 4600 lumens, with a density of 120 LED chips/meter.



Easy installation and handling

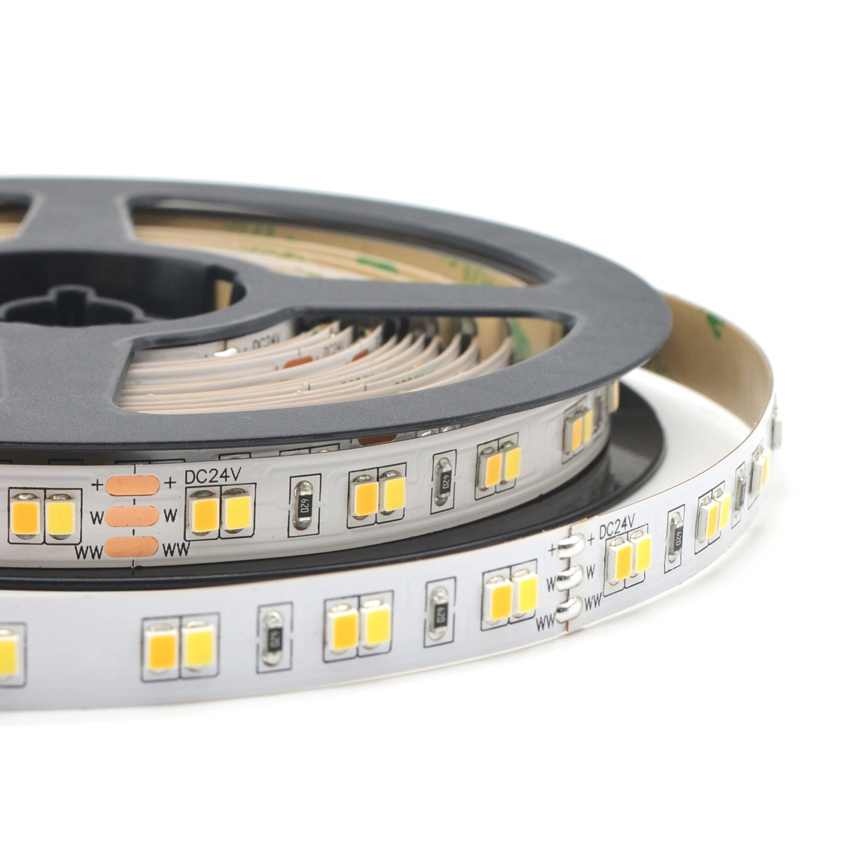

The LED strip is supplied in a roll of 5 meters. Cuts can be made every 100 mm, according to the indicated markings, and a silicone plug can be placed at the end. The width of the strip is 10 mm and has a 3M self-adhesive backing to adhere it to the desired surface.



Recommended use for LED strips

General indoor lighting

Shop window, shelf and display lighting

Indoor decorative lighting

Interior architectural lighting

Highlighting objects, contours or structures.
