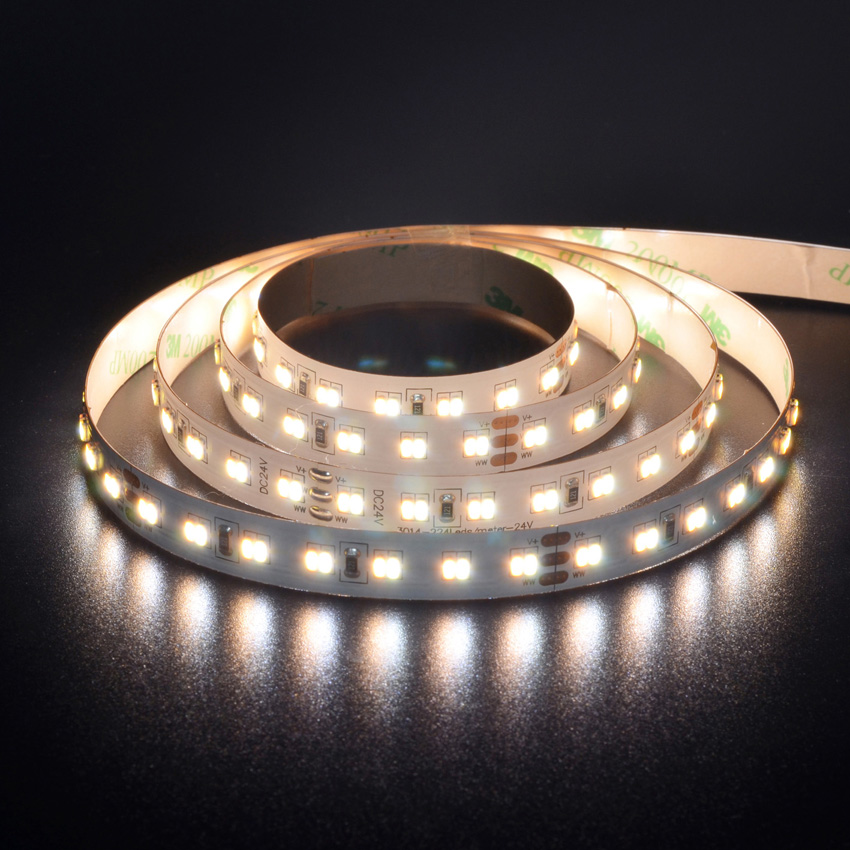

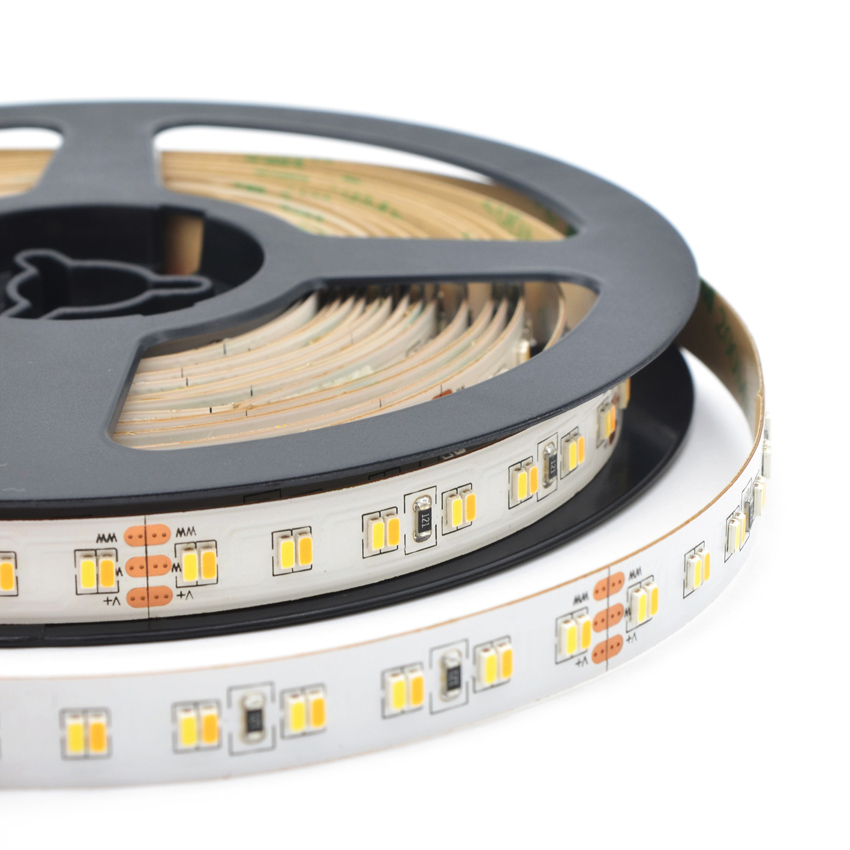

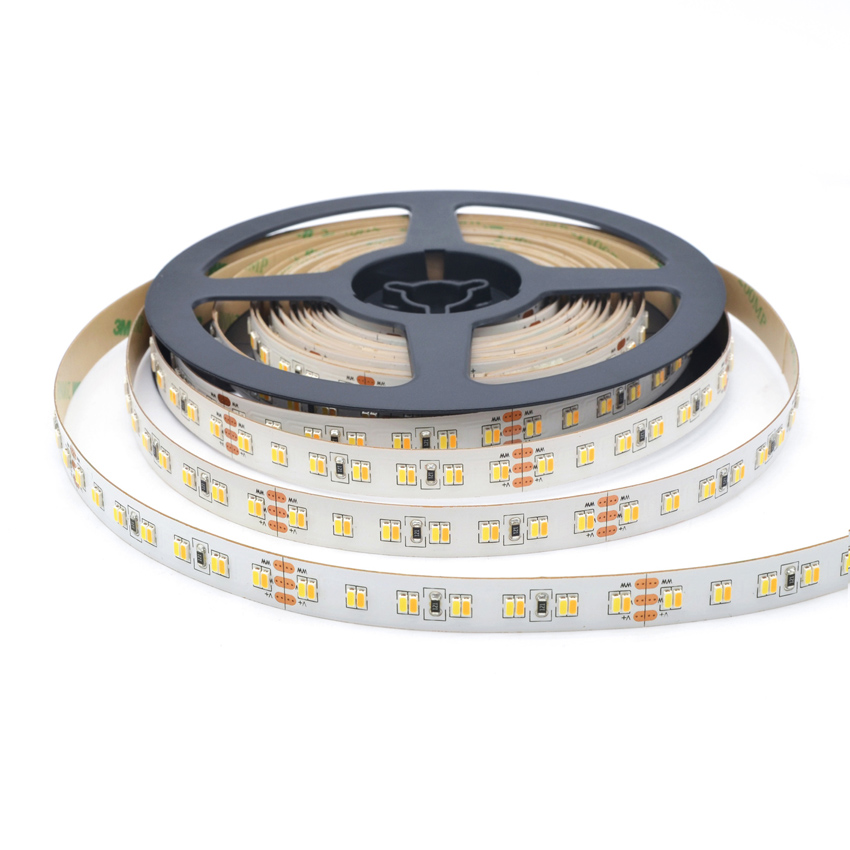

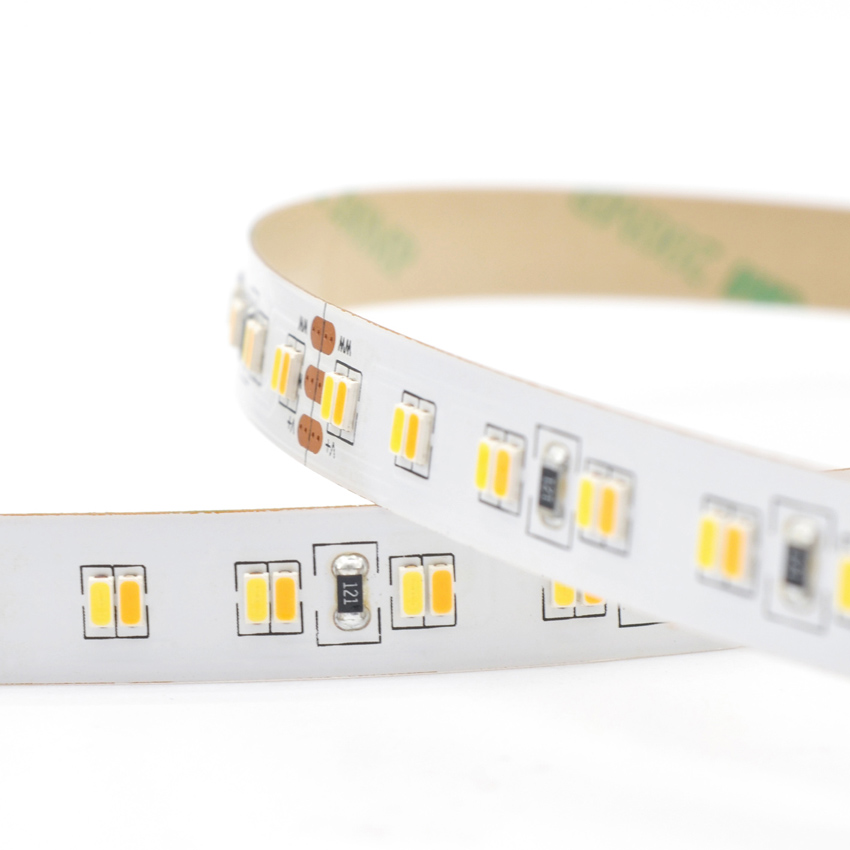

24V 5m iP20 3014 Warm White Cool White Adjustable LED Strip

Features



  • Easily Change White Color Temperature
  • Fully Dimmable
  • Fully Adjustable Between Warm White and White
  • Color: Warm White 3000K and White 6000K
  • Warm White 402 Lumens/Foot, White 658 Lumens/Foot
  • 8mm Printed Circuit Board Width
  • 16.4ft Spool / 1200 LEDs
  • 120 SMD 3014 LED’s/Foot
  • Super Small Cut Points Every 2in
  • Includes 13.5in Long Lead Wires for Easy Connecting
  • Strong 3M Double Sided Tape
  • Great for Dramatic Entertainment Lighting, Cove Lighting and Accent Lighting
SKU NO.
YR-ST-LV12-W10-240-CCT
Voltage
DC24V
Power
16W/m
Colour
Tunable White
LEDs/M
240LEDs/M
CRI
90
IP Rating
IP20
Min Cut Unit
50mm
Efficiency
80Lm/W
Working Temperature
-25°C~+60°C
PCB Wideth
10mm
Warranty
3 Years

Description

Unable to decide whether you should get your next LED Strip in warm, natural or cool white, or something in between? With the 24V iP20 3014 CCT Adjustable LED Strip - 240 LED/m from us, you can have it all in the same Strip.

Thanks to the special CCT Adjustable Remote and Controller(WIFI/BLE/ZIGBEE/IR Optional), you can control the color temperature of your white from 2700K to 6500K in increments of approximately 3000K and dim your LED Strip.

This 3014 LED Strip offers 240 LEDs per meter (120 Warm White and 120 Cool White) for a total of 1200 LEDs per 5m Strip. That is an average brightness of 1100 lumens per meter at a 120 degree lighting angle. Versatile, it can be cut at every 6 LEDs  (approx 5cm) to perfectly fit your project. The CCT Adjustable LED Strip has a CRI (color rendition Index) of >90.

This CCT Adjustable 3014 LED Strip with 240 LED per meter requires 18W of power per meter and has brightness second to none that allows you to get a continuous flow of Light (without the standard dot effect of LEDs) when you combine this CCT Adjustable LED Strip with our specially designed LED Aluminum profile. Imagine how amazed your guests will be when they see a thin light bar that looks exactly like neon.

Like all High Intensity Strips, the 3014 Strips MUST benefit from proper heat dissipation in order to ensure proper performance and durability. Attempting to install this LED Strip on an improper surface may permanently damage the Strip and surface. In order to obtain proper heat dissipation, you must install the 3014 LED Strip in a compatible Aluminum profile.

Looking for a power supply for your 24V Strip? Contact us for more details or solutions.This LED Strip can only be used with a Non-Dimmable power Supply and its own CCT Adjustable controller.

Rated at iP20, this LED Strip offers no protection from water and dust which is why we recommend installing it in an aluminum profile. Furthermore, there are free solderless connectors available for The CCT Adjustable 3014 LED Strip, you could inquire us how they are connected. Given its high intensity, we recommend using 20AWG wire should you need to make connections between parts of LED Strips. If you‘re not in a position to make proper soldering, our Team will be happy to cut and solder your Strips according to your needs. A 3 to 5 business day delay is required to complete your project.

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
